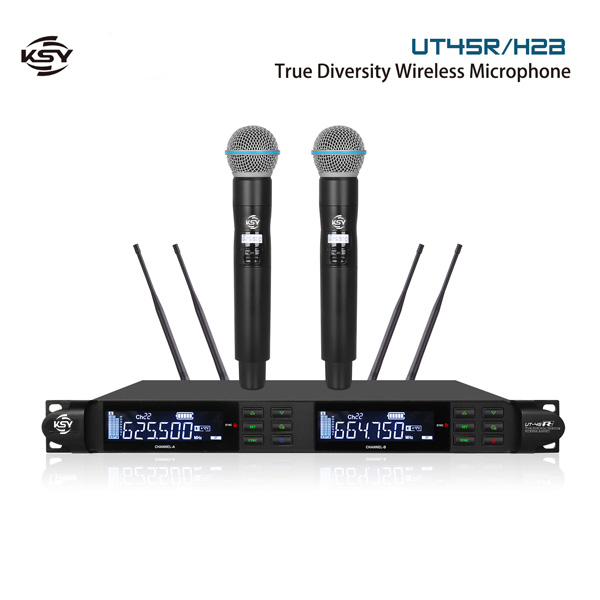

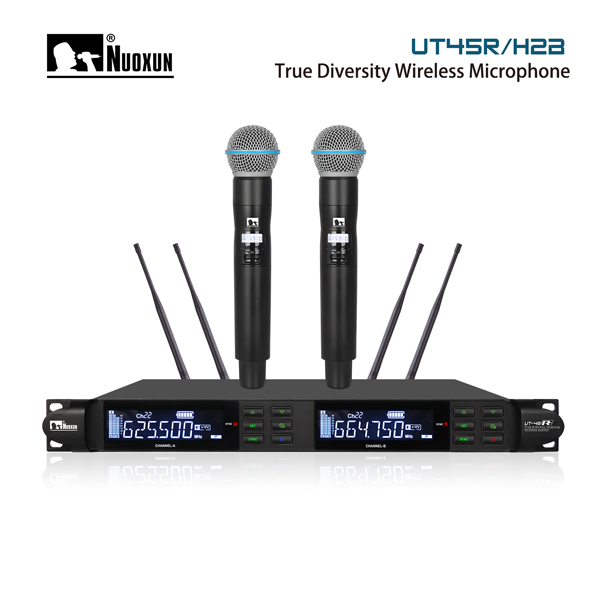

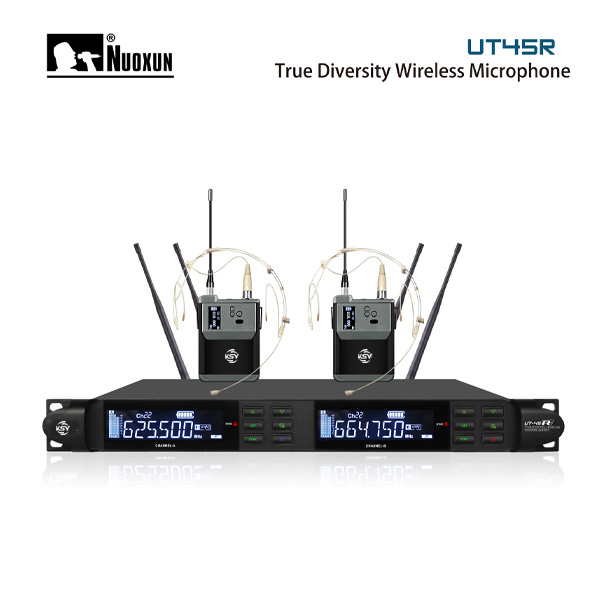

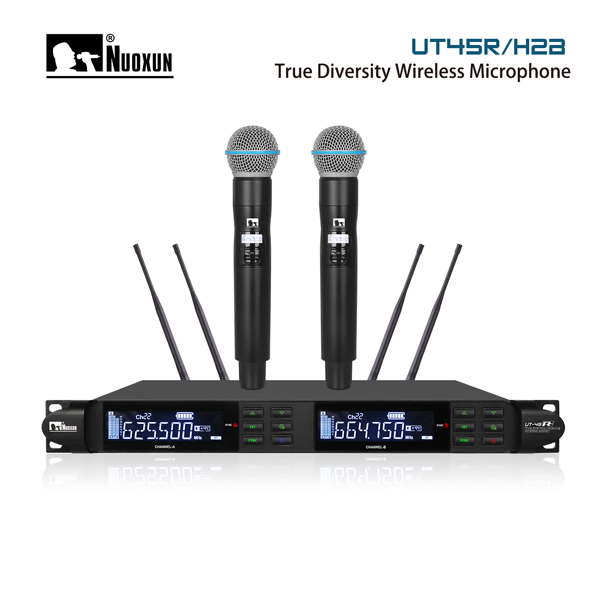

UT-45R

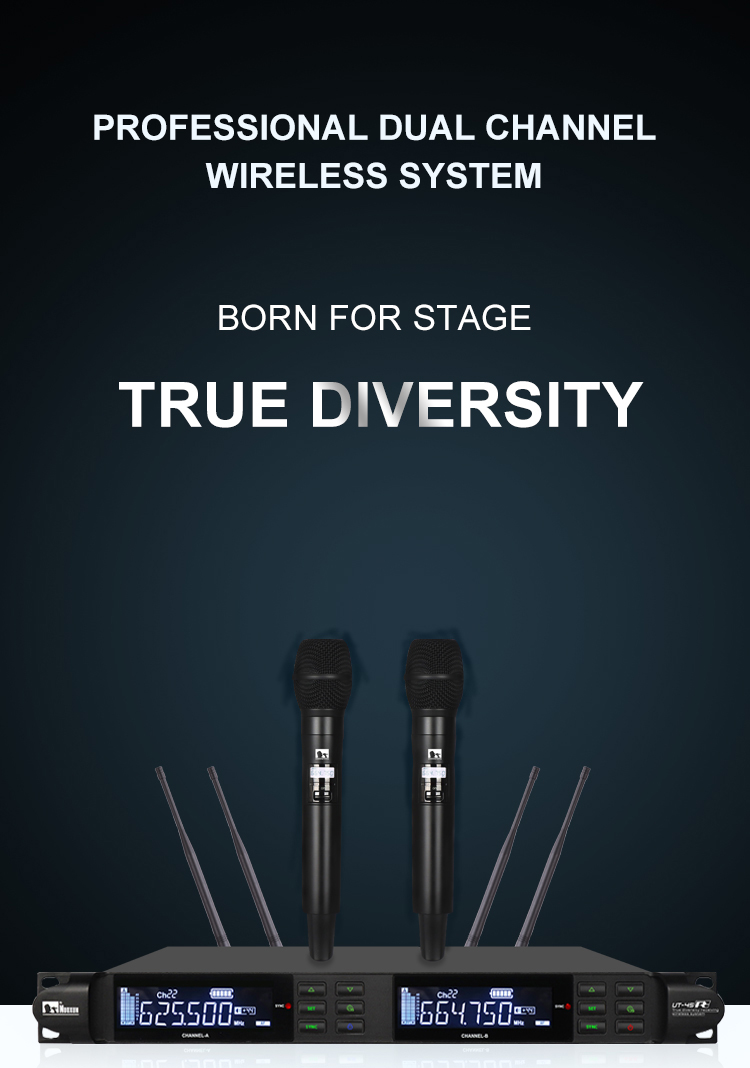

True Diversity UHF Dual Channel Wireless Microphone

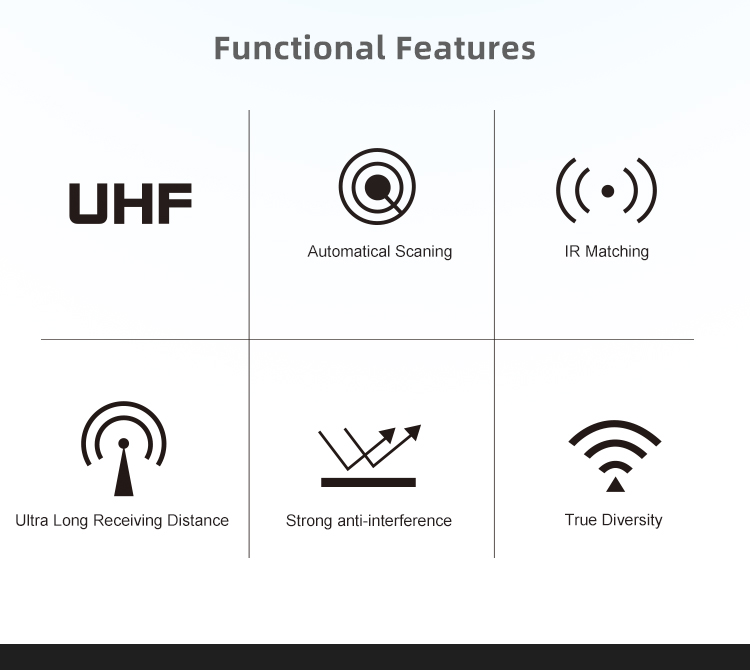

Features:

◆  ADOPT UHF FREQUENCY RANGE TO AVOID INTERFERENCE FREQUENCY;

◆  SMALL TRANSMISSION DELAY AND THE LONG RECEIVING DISTANCE;

◆  FULLY INTEGRATED CHIP SOLUTION WITH STABLE PRODUCT PERFORMANCE;

◆  2 X 80 FREQUENCY POINTS ADJUSTABLE;

◆  ENHANCED WIRELESS RECEPTION EFFECT;

◆  BEAUTIFUL LARGE LCD LIQUID CRYSTAL DISPLAY EFFECT;

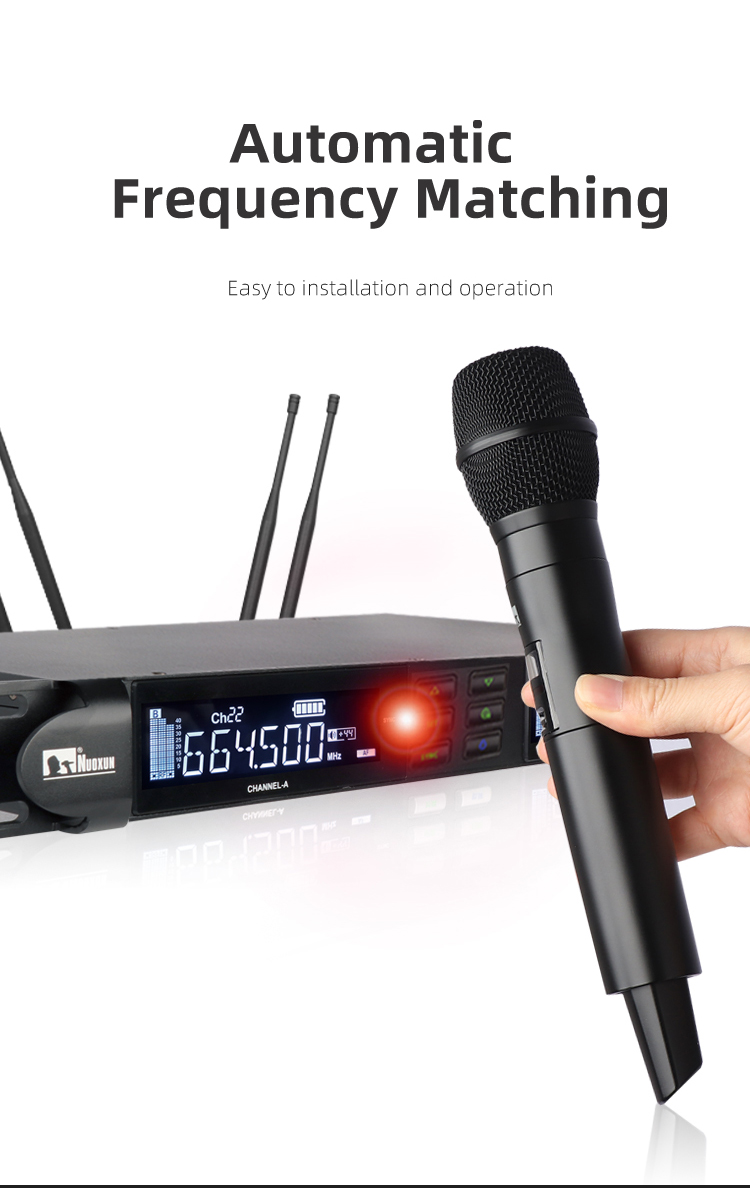

◆  WITH THE FUNCTION OF AUTOMATICALLY SEARCHING FOR CLEAN CHANNELS;

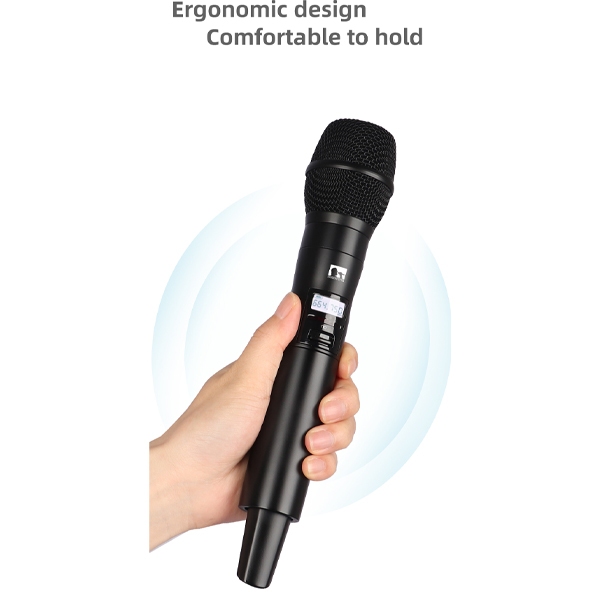

◆  THE HAND MICROPHONE HAS AN OPTIONAL INTELLIGENT MUTE FUNCTION;

◆  OPTIONAL ELECTRONIC VOLUME ADJUSTMENT FUNCTION;

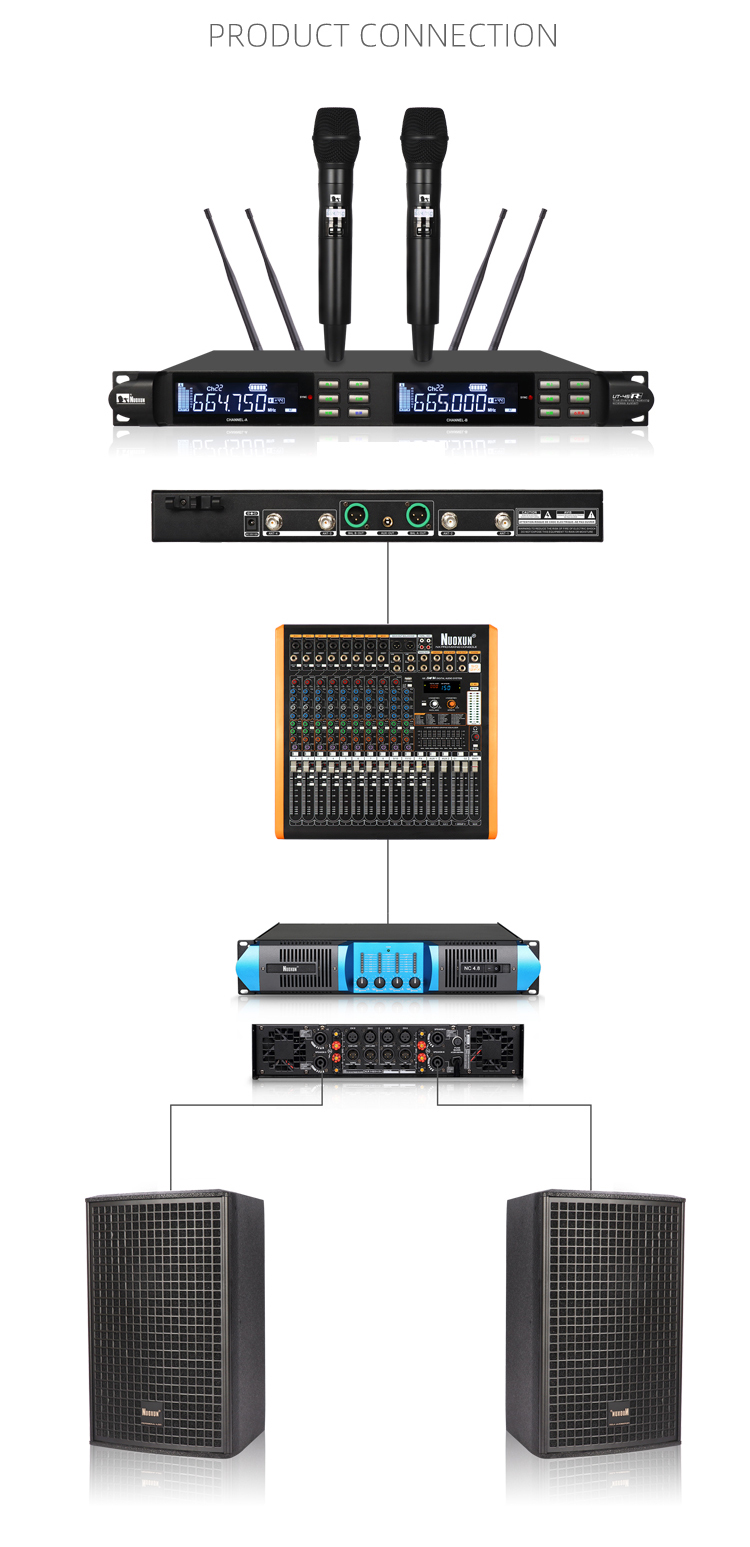

◆  IT HAS BALANCED OUTPUT AND MIXED OUTPUT, WHICH CAN BE CONNECTED TO MIXER AND KTV EFFECTOR.

HOST TECHNICAL PARAMETER：

FREQUENCY RANGE: 615-665MHZ (CAN BE CUSTOMIZED)

MODULATION METHOD: FM

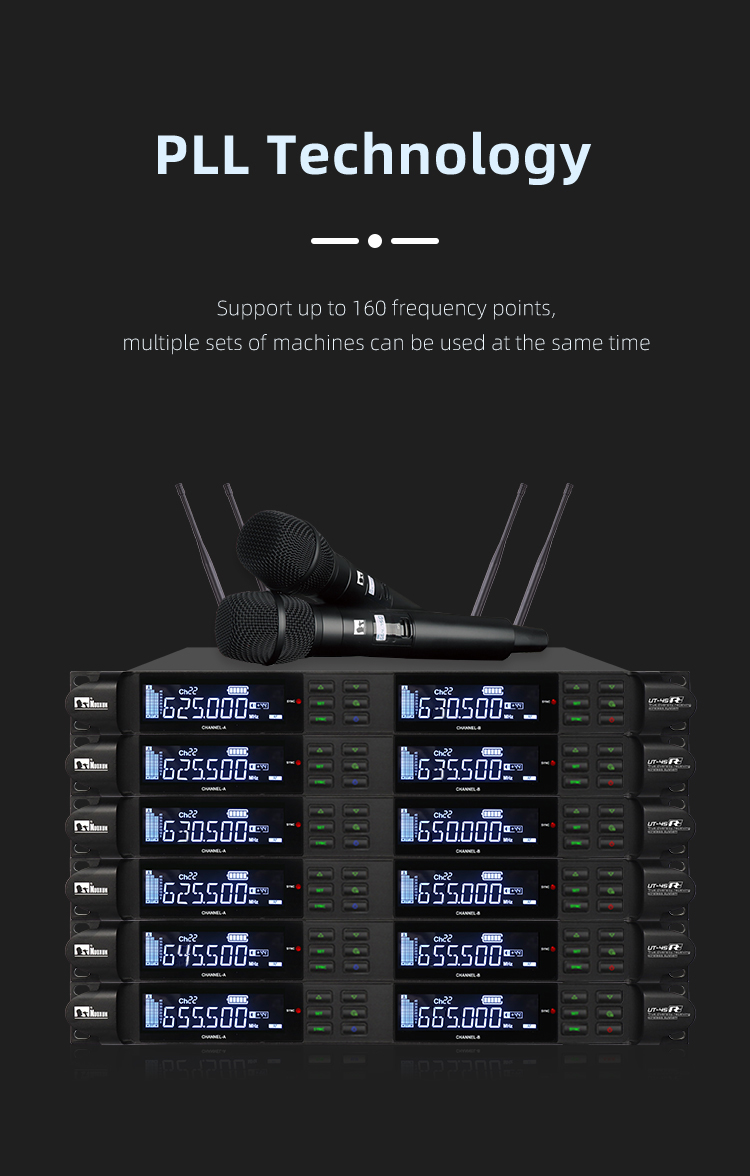

OSCILLATION MODE: PLL TECHNOLOGY

FREQUENCY STABILITY: ±0.0005%

SENSITIVITY: WHEN THE OFFSET IS EQUAL TO 25KHZ AND THE INPUT IS 6DBΜV,

S/N RATIO:>60DB

MAXIMUM OFFSET: ±45KHZ

FREQUENCY BANDWIDTH: 40MHZ

COMPREHENSIVE S/N RATIO: >108 DB

INTEGRATED T.H.D.:<0.4%>

COMPREHENSIVE FREQUENCY RESPONSE: 65HZ~18KHZ ± 3DB,

MAXIMUM OUTPUT VOLTAGE: BALANCED: -20DBV/100Ω,

UNBALANCED: -4DBV/5KΩ.

OUTPUT SOCKET: XLR BALANCED AND 6.3Φ UNBALANCED SOCKET

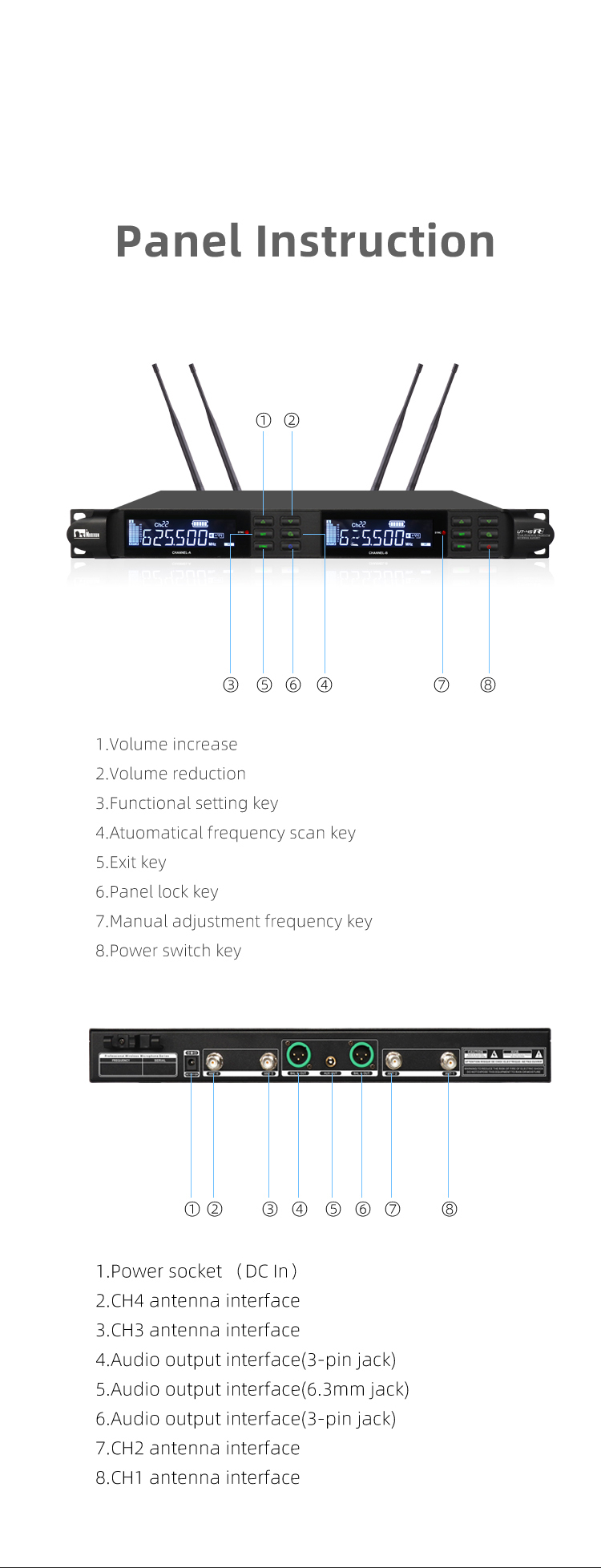

PANEL BUTTONS: SWITCHING AND DISPLAY OF HANDHELD AND POCKET BUTTONS

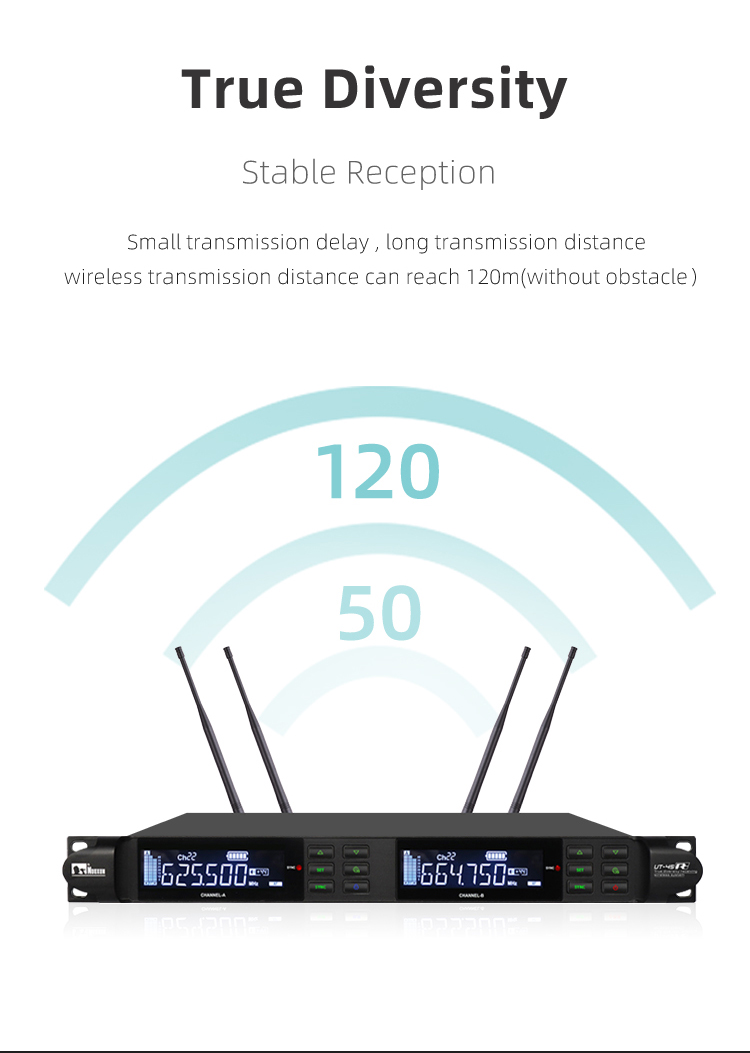

EFFECTIVE DISTANCE: GENERALLY 100 METERS (VISIBLE RANGE)

ADAPTER POWER SUPPLY: AC100V - 240V~ 50/60 HZ, 10W

RECEIVER POWER SUPPLY: DC12V-2A

TRANSMITTER TECHNICAL PARAMETER：

FREQUENCY RANGE: 615-665MHZ

OSCILLATION MODE: PLL TECHNOLOGY

HARMONIC RADIATION: < -63DBM

FREQUENCY BANDWIDTH: 80MHZ

MAXIMUM OFFSET: ± 45KHZ

POWER OUTPUT: 3 0MW

FREQUENCY RESPONSE: 50HZ~18KHZ

MAXIMUM INPUT SOUND PRESSURE: 130DB SPL

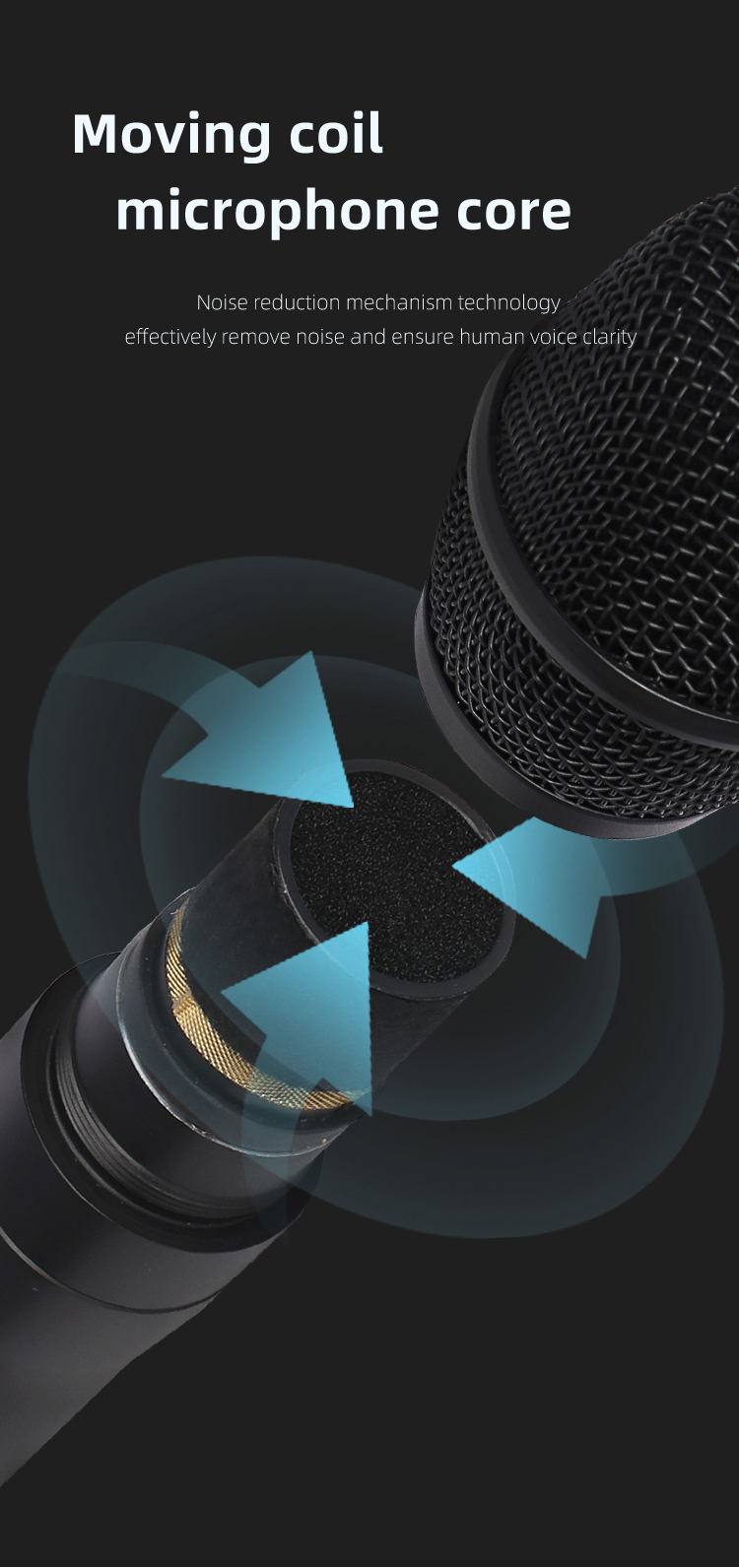

PICKUP HEAD: HAND-HELD MOVING COIL / HEADSET LAVALIER CAPACITIVE

RF POWER OUTPUT: STANDARD 8MW; 15MW (OPTIONAL)

BATTERIES: AA X 2

CURRENT CONSUMPTION:<150MA
