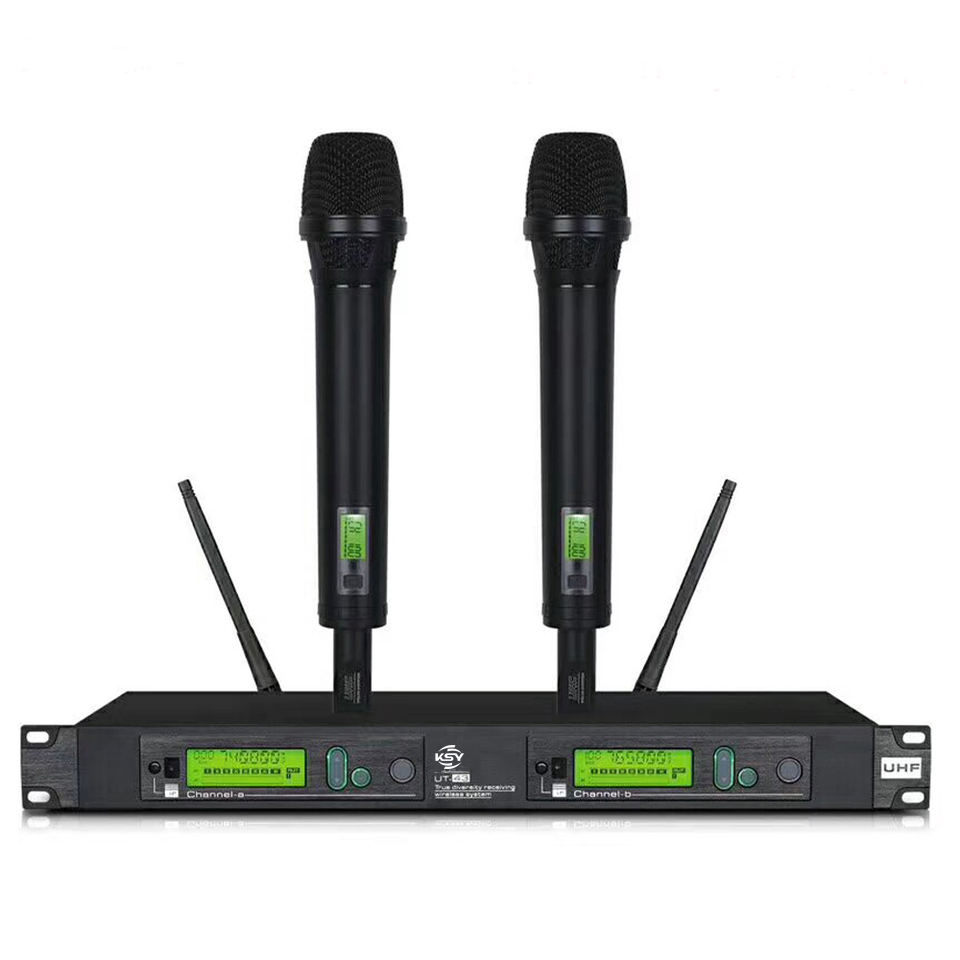

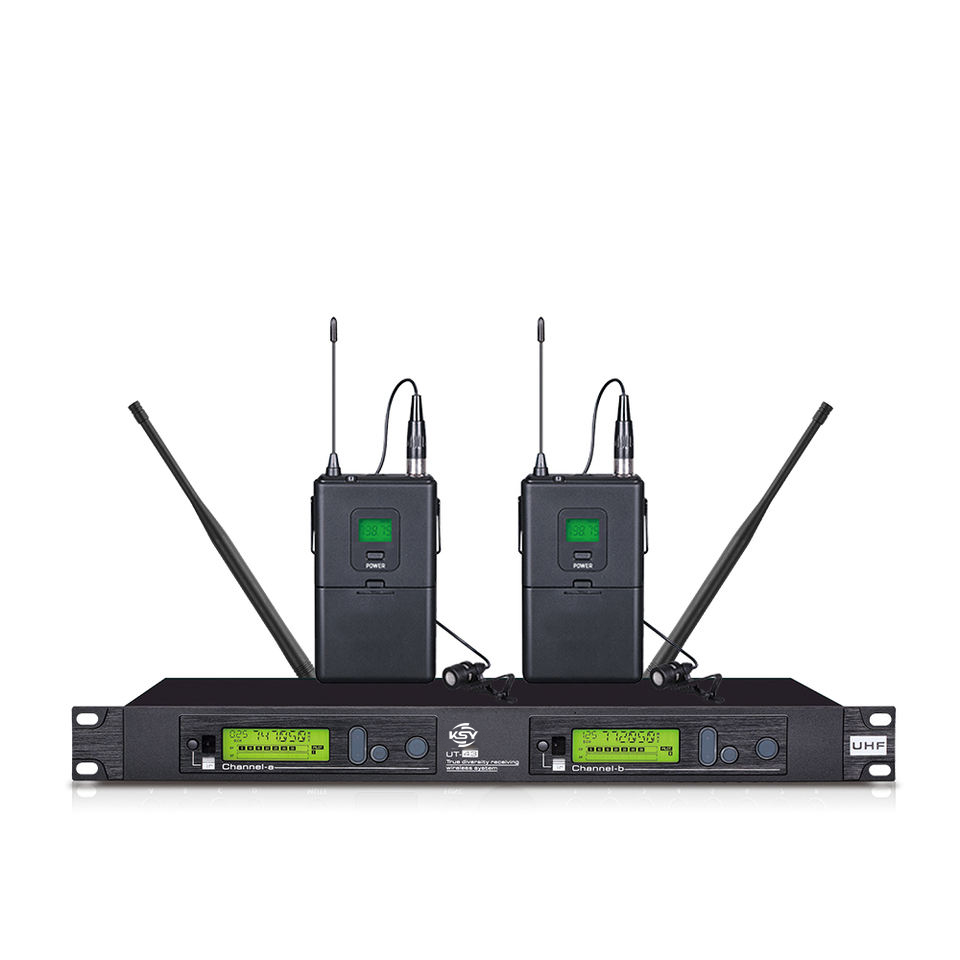

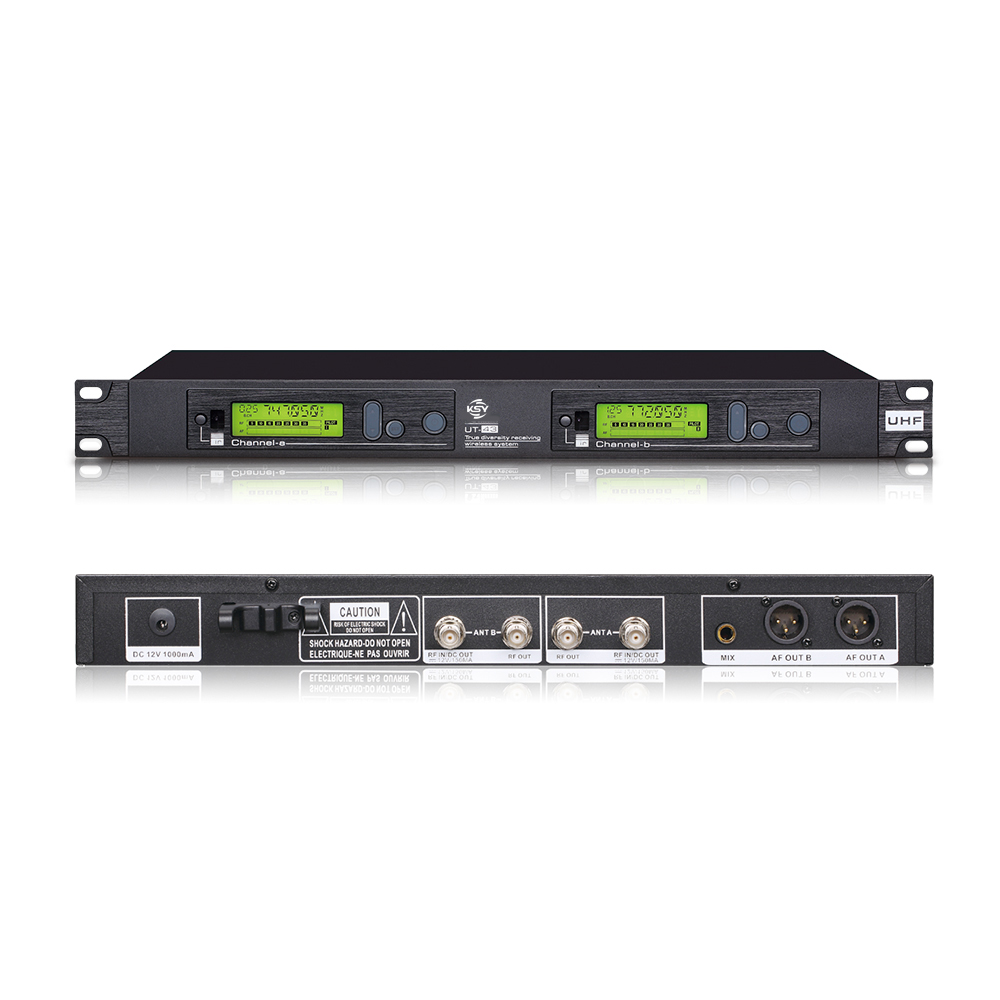

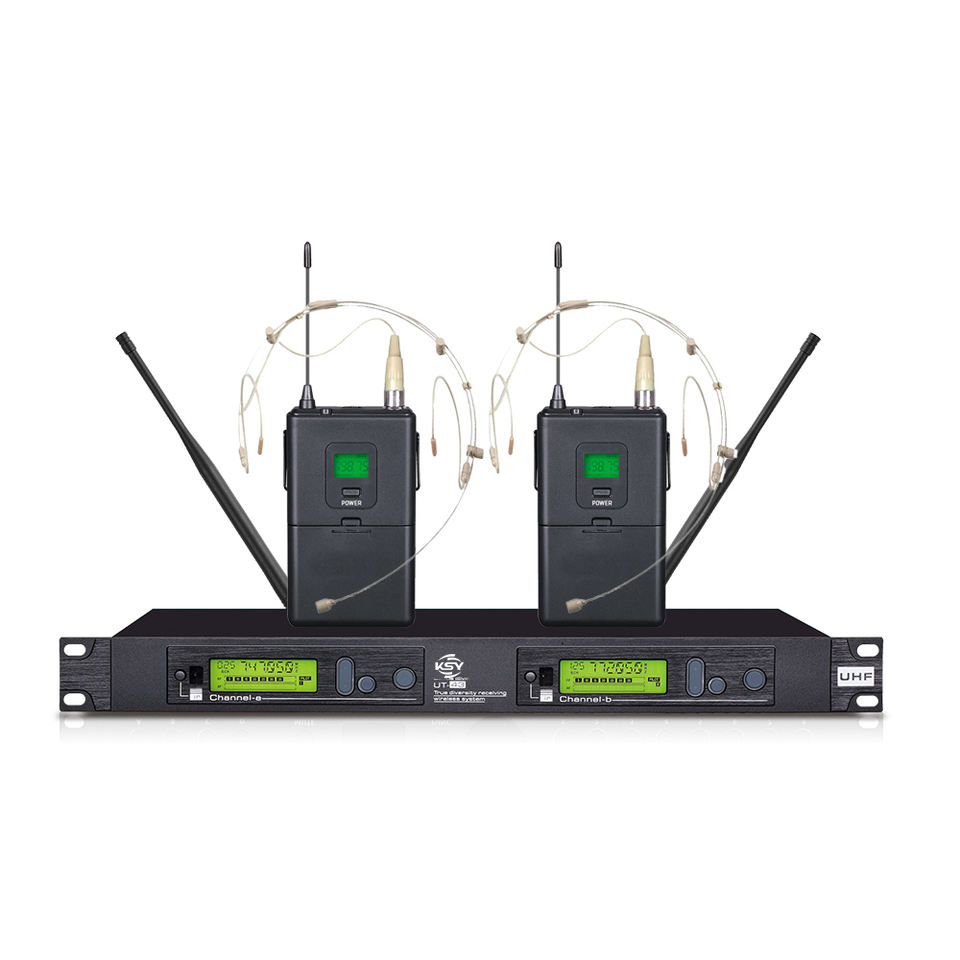

UT-43

TRUE DIVERSITY UHF DUAL CHANNEL WIRELESS MICROPHONE

FEATURES:

◆  SPECIALLY DESIGNED FOR LIVE PROFESSIONAL PERFORMANCES,TRUE DIVERSITY DESIGN.

◆  BUILT-IN ANTENNA AMPLIFIER, WHICH CAN REALIZE MULTI-MACHINE CONNECTION.

◆  WITH SUPER ANTI-INTERFERENCE ABILITY, WIDE AND STABLE SIGNAL SENDING RECEIVING ABILITY.

◆  INTELLIGENT VOLUME COMPRESSION TO ACHIEVE LARGE DYNAMIC SOUND TRANSMISSION.

◆  ULTRA-LOW BACKGROUND NOISE, HIGH FIDELITY.

◆  FLEXIBLE TRANSMITTER FREQUENCY SETTING, VOLUME SETTING FUNCTIONS. USED FOR  PERFORMANCES,INTERVIEWS, AND CONFERENCES, ETC.

◆  PLL PHASE-LOCKED LOOP DESIGN, HIGHER FREQUENCY STABILITY AND EXCELLENT FREQUENCY  SELECTION CHARACTERISTICS; AUTOMATIC FREQUENCY LOCKING FUNCTION.

◆  TWO-COLOR BACKLIGHT LCD DYNAMIC LIQUID CRYSTAL DISPLAY, INTUITIVE DISPLAY OF WORKING  STATUS.

TECHNICAL PARAMETER：

MODULATION: WIDEBAND FREQUENCY MODULATION (FM)

FREQUENCY RANGE: 610-670MHZ(CAN BE CUSTOMIZED)

NUMBER OF CHANNELS: 200 PRESET CHANNELS, CHANNEL INTERVAL 250KHZ

COMPREHENSIVE SIGNAL-TO-NOISE RATIO: 105DB

ADJACENT CHANNEL SUPPRESSION: ≥70DB (INTERFERENCE SIGNAL)

RECEIVING METHOD: AUTOMATIC SELECTION RECEPTION

MAXIMUM OUTPUT LEVEL: +10DBV

PICKUP HEAD: MOVING COIL

RF OUTPUT POWER: HIGH POWER 30MW / LOW POWER 3MW

SENSITIVITY: ADJUSTABLE SENSITIVITY

DISTANCE: 50-200 METERS (OPEN DISTANCE)
