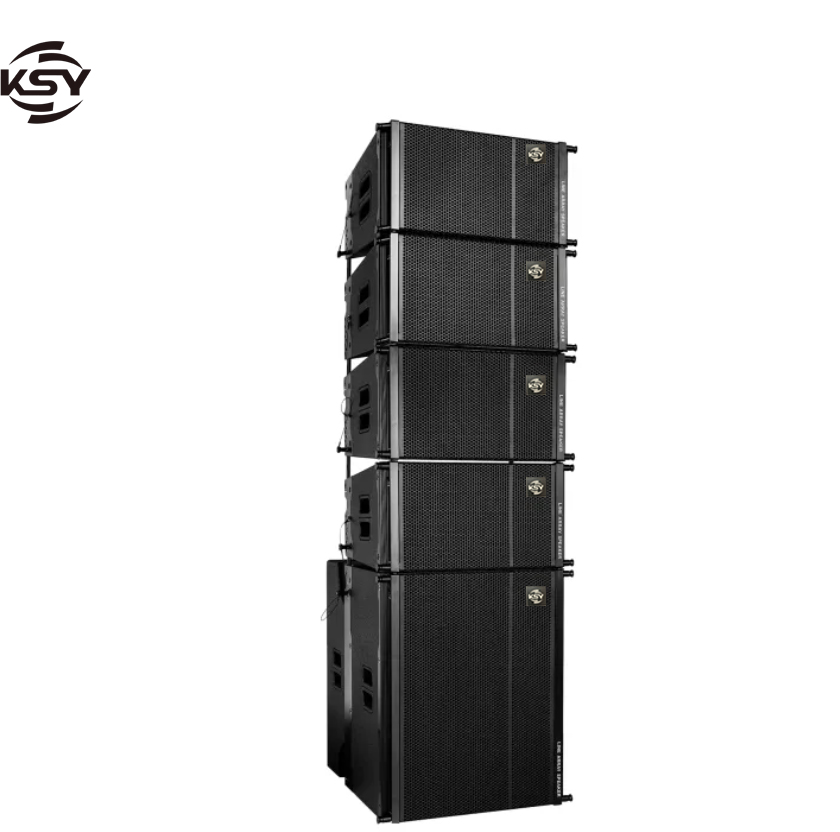

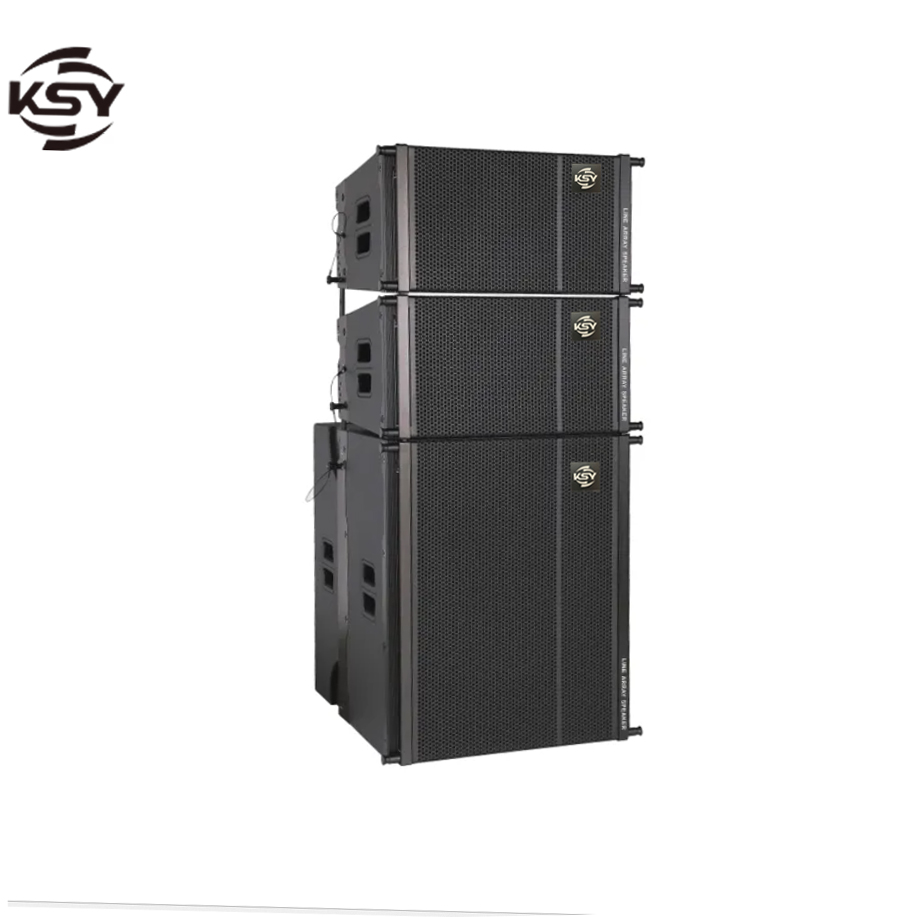

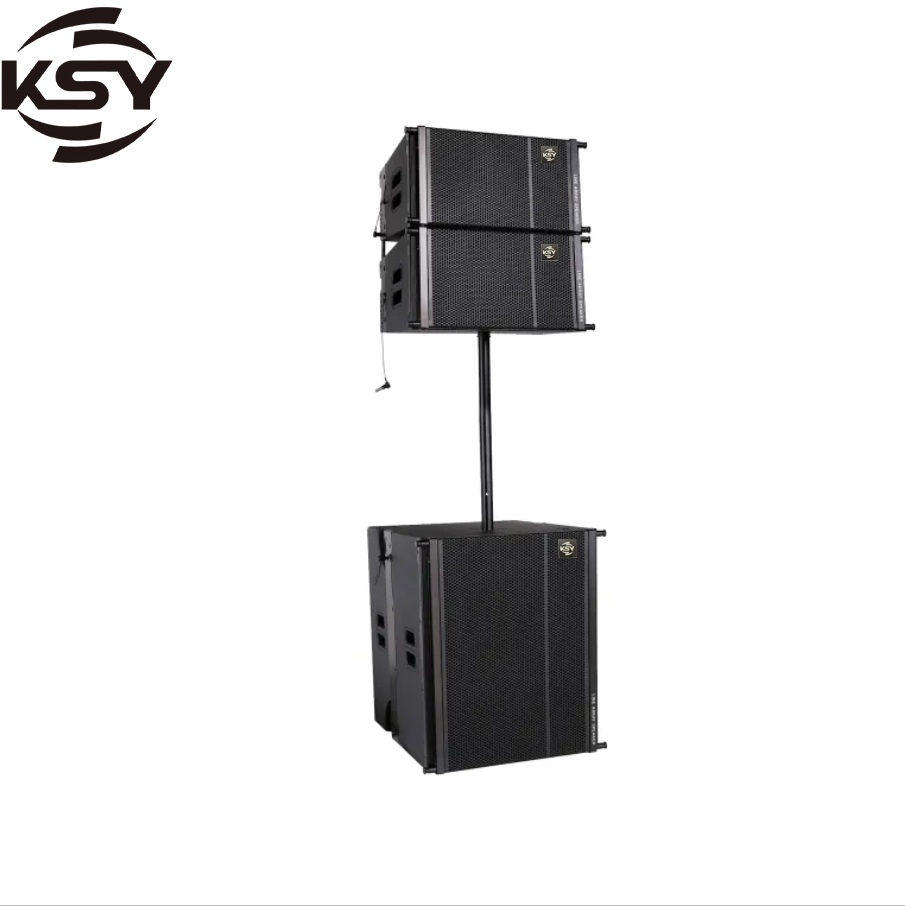

single 10 inch powered line array speaker Line array speaker
| Place of Origin: | Guangdong, China | Brand Name: | KSY |
| Model Number: | TQ10/TQ118B | Power: | 300W/800W |
| Frequency Range (Hz): | 55Hz-20Hz | Dimension (L x W x H): | 280mm x470mm x360mm, 290mm x560mm x380mm |
| Type: | powered line array | Color: | Black |
| Impedance: | 16ohms | Material: | birch plywood |
| Rated Power: | 300W | Model: | speaker 10 inch |
| Frequency response: | 60Hz-18Hz(±3dB) | Sensitivity: | 104db half space |
| Packing: | powered line array With EPE in 7mm thickness cartons or flight |
| Basic parameters | |
| Model | TQ10 |
|
Name |
Single 10 inch active line array speaker |
| Power | 300W |
| Impedance | 16 ohms |
| Frequency range | 55Hz-20kHz |
| Frequency response | 60Hz-18kHz(±3dB) |
| Sensitivity | 104dB SPL 1w/1m |
| Maximum SPL @ 1 m | 133dB SPL |
| High frequency | 2*25mm (neodymium ND magnet) |
| Low frequency | 156mm magnet/65mm voice coil |
| Dimensions(HxWxD) | 290mm x560mm x 380mm |
| Material | 15mm thickness birch plywood cabinet |
| Net weight(each) | 15Kg |
| Model | TQ118B |

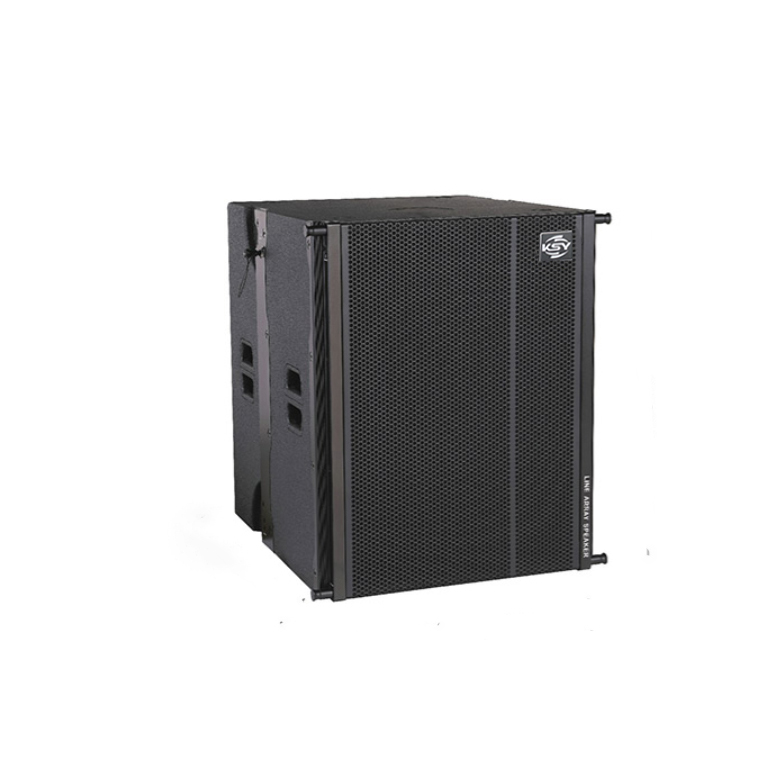

| Name | Single 18inch line array subwoofer |
| Power | 800W |
| Impedance | 8 ohms |
| Frequency range | 45Hz-400Hz |
| Frequency response | 50Hz-150H(±3dB) |
| Sensitivity | 102B SPL 1w/1m |
| Maximum SPL @ 1 m | 130dB SPL |
| Low frequency | 220mm magnet/100mm voice coil |
| Dimensions(HxWxD) | 650mm x 540mm x620mm |
| Material | 18mm thickness birch plywood cabinet |
| Net weight(each) | 37Kg |
