NX-7600M Wired Discussion Conference System

CHARACTERISTICS:

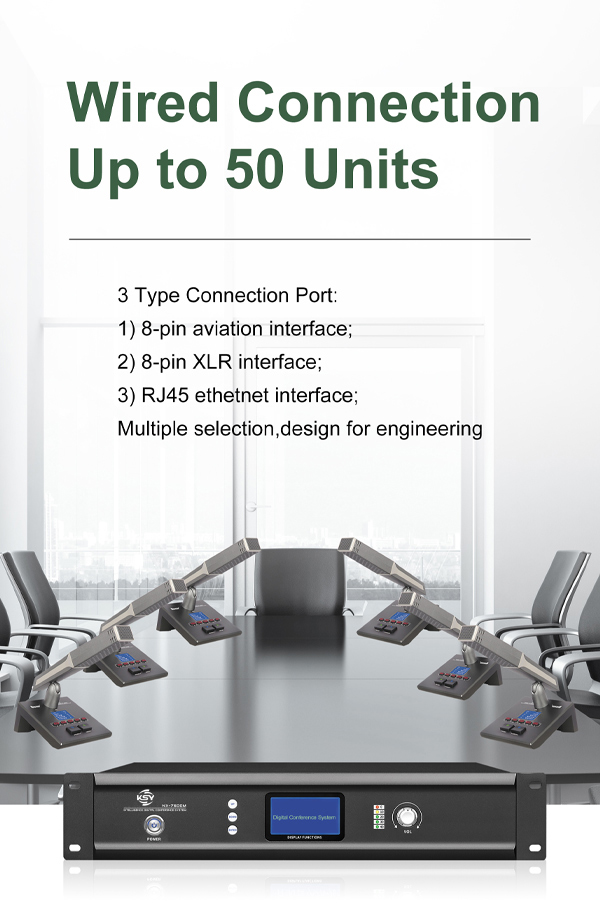

1) The system adopts 8-pin full-digital high-fidelity circuit development and design (Can be customize RJ45 connection);

2) Built-in RISC high-performance CPU, stable system and fast calculation;

3) The host adopts liquid crystal display, and the menu operation is more intuitive and user-friendly;

4) The host unit has two output port options, and total 100 units can be connected;

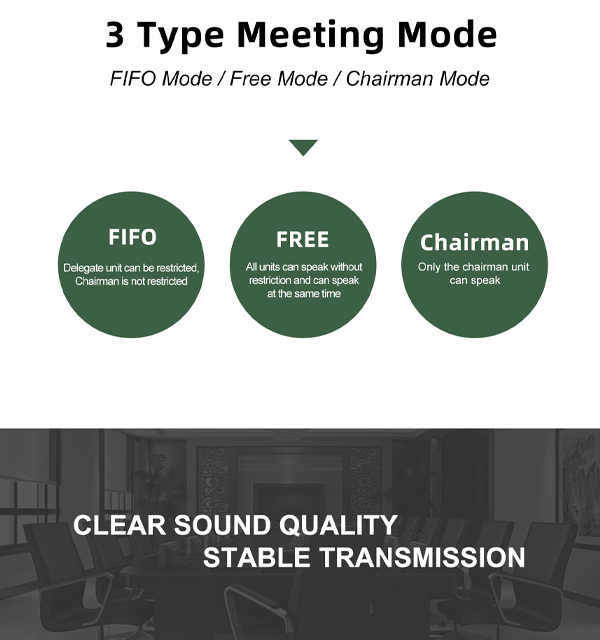

5) The system speech mode has first-in first-out, last-in-last-out, automatic mode, discussion mode, chairman mode;

6) The unique high-fidelity audio processing circuit improves the clarity of the entire system;

7) Equipped with recording output interface, all meeting records can be completely recorded and saved

    and the audio output can also be connected to an external audio amplifier;

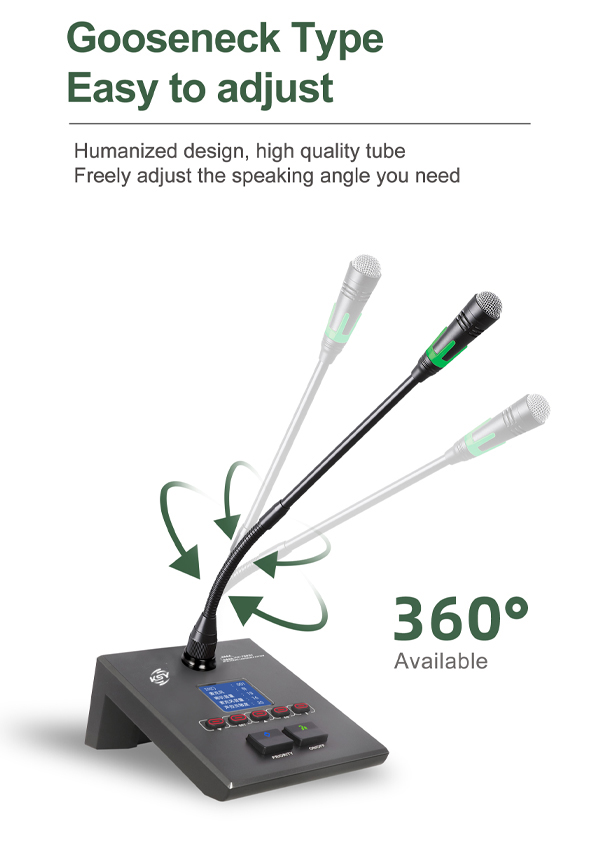

8) The chairman unit can use the priority button (Priority) to control the order of speech and the atmosphere of the meeting;

9) The conference unit is powered by the system host, and the working voltage is DC 18V, which meets safety standards.

Receiver Features:

◆ EASY AND CONVENIENT TO INSTALL

◆ BUILT-IN MODERATE HOWLING INHIBITION FUNCTION, WHICH CAN EFFECTIVELY

   REDUCE THE HOWLING

◆ BUILT-IN ADVANCED SWEEPING ALGORITHM.SCAN THE OPERATING ENVIRON MENT AND AUTOMATICALLY SELECT

    THE FREQUENCY WITHOUT INTERFERENCE

◆ BUILT-IN ADVANCED ENCRYPTION COMMUNICATION ALGORITHM, COMPLETELY ELIMINATE COMMUNICATION ERRORS

   AND MISOPERATION

◆ BUILT-IN POWER MONITORING FUNCTION.CONFERENCE STAND SHOWS BATTERY LEVEL

◆ BUILT-IN CHAIRMAN PRIORITY FUNCTION

◆ CONTROL OF INTELLIGENT SPEECH RIGHTS,SUPPORT 4 PEOPLE TO SPEAK AT THE SAME TIME

SCOPE OF APPLICATION:

◆ OFFICE CONFERENCE ROOM

◆ BANK /HOTEL CONFERENCE ROOM

◆ SCHOOL RADIO, CONFERENCE, ART PERFORMANCE HOST, ETC

◆ FOLK ORCHESTRA, OUTDOOR PERFORMANCE

◆ WEDDING PROGRAM HOST

◆ RADIO PROGRAMS TO ANSWER, DISCUSS, ETC

◆ TV PROGRAM PERFORMANCE, GUEST COMMENTS, ETC

RECEIVER SPECIFICATION:

◆ RECEIVER WORKING VOLTAGE: DC--12V-14V 2A

◆ OPERATING CURRENT: 600MAH

◆ POWER CONSUMPTION:5W

◆ RECEIVE SENSITIVITY:-105DB

◆ OUTPUT VOLTAGE:1V

◆ FREQUENCY RESPONSE:50HZ-15KHZ

◆ FREQUENCY STABILITY: ± 0.001%

◆ S/N:>100DB

◆ THD:<0.01%< SPAN="">

UNIT SPECIFICATION:

◆ FREQUENCY INTERFERENCE REJECTION: >60DB

◆ POLARS PATTERN: CARDIOID

◆ SENSITIVITY:-40DB

◆ TRANSMITTING POWER: >10DBM(10MW)

◆ POWER CONSUMPTION:120MAH

◆ FREQUENCY RANGE:CAN BE CUSTOMIZED

◆ CONNECTION PORT: 8-PIN CONNECTION (CAN BE CUSTOMIZED BY RJ45 CONNECTION)
