NX-3288S Wirelee Video Tracking Conference System

PRODUCT INTRODUCTION:

THIS SYSTEM IS A POPULAR WIRELESS VIDEO TRACKING CONFERENCE SYSTEM BASED ON THE CONCEPT OF SIMPLE OPERATION. THE WHOLE SYSTEM IS SIMPLE TO OPERATE, NO WIRING, STABLE PERFORMANCE, IS AN IDEAL SOLUTION FOR THE APPLICATION OF MEETING ROOMS.

FEATURES OF THE SYSTEM HOST:

L THE ENGINEERING INSTALLATION IS EASY AND SIMPLE, ONE-BUTTON WIRELESS REMOTE BATCH FREQUENCY PAIRING, AND THE CONFERENCE UNIT IS READY TO USE;

L THE SYSTEM INTEGRATES THE FUNCTIONS OF DISCUSSION AND VIDEO TRACKING, AND IT CAN AUTOMATICALLY TRACK THE SPEAKING UNIT BY LINKING WITH THE CAMERA;

L SUPPORT RS485, RS232 CAMERA SERIAL PORTS, UP TO 7 CAMERAS CAN BE CASCADED AT THE SAME TIME;

L THE SYSTEM SUPPORTS TWO CAMERA PROTOCOLS, PELCO-D AND VISCA;

L UP TO 99 PRESET POINTS CAN BE SET FOR EACH CAMERA TO MEET THE NEEDS OF LARGE CONFERENCES;

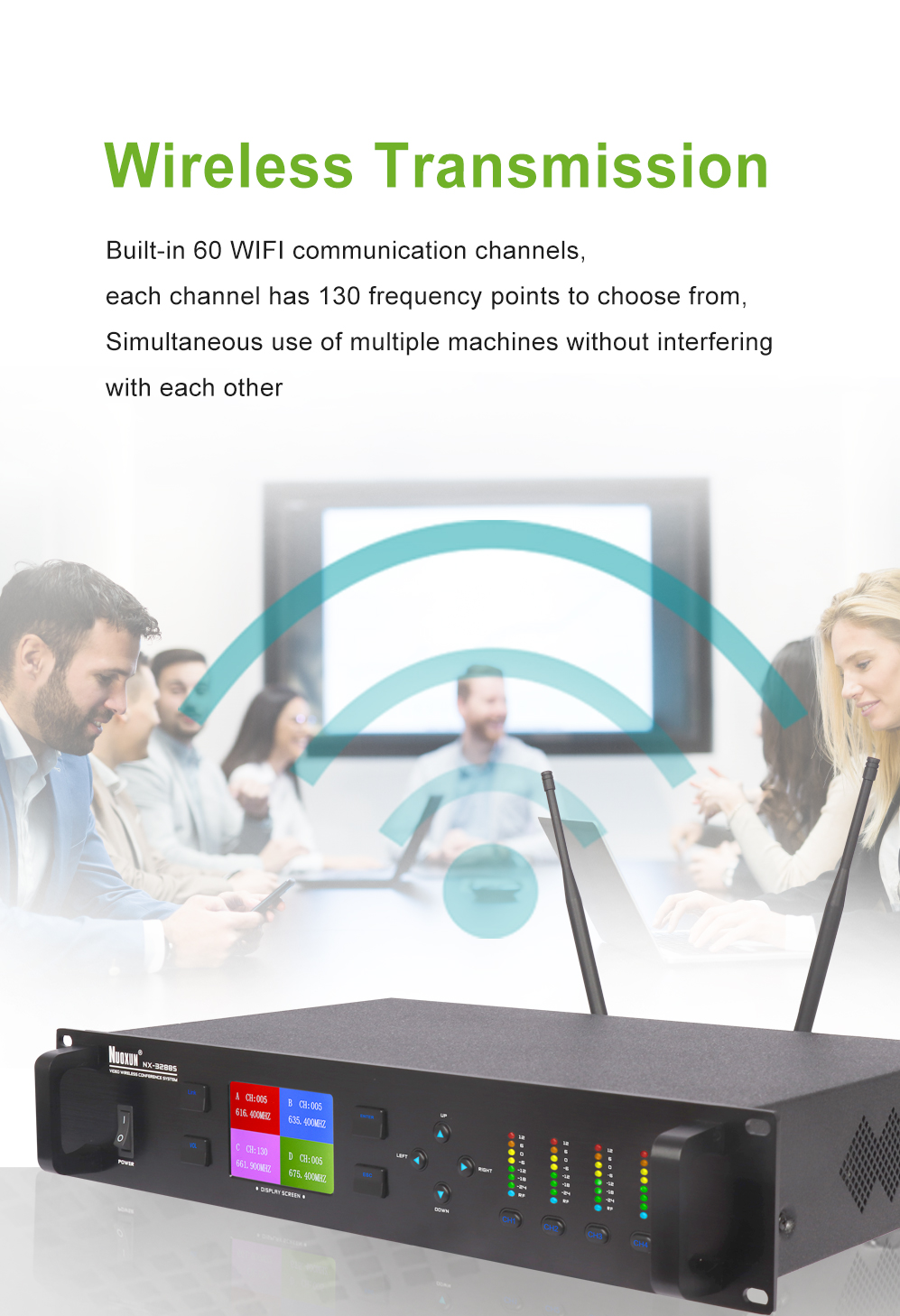

L BUILT-IN 60 WIFI COMMUNICATION CHANNELS, EACH OF THE 4 CHANNELS HAS 130 FREQUENCY POINTS TO CHOOSE FROM, AND MULTIPLE MACHINES CAN BE USED AT THE SAME TIME WITHOUT INTERFERING WITH EACH OTHER;

L BUILT-IN ADVANCED FREQUENCY SWEEP ALGORITHM. ABLE TO SCAN THE USAGE ENVIRONMENT AND AUTOMATICALLY SELECT THE FREQUENCY WITHOUT INTERFERENCE;

L INTELLIGENT SPEECH AUTHORITY CONTROL, SUPPORT 4 PEOPLE TO SPEAK AT THE SAME TIME,

SUPPORT UP TO 255 PEOPLE FIRST IN FIRST OUT;

L THE INDEPENDENTLY DEVELOPED DATA COMMUNICATION ALGORITHM ENABLES USERS TO FLEXIBLY INCREASE OR DECREASE ATTENDANCE UNITS WITHIN THE SIGNAL RANGE;

L THERE IS NO NEED TO LAY CABLES, AND THE SIGNAL COVERAGE AREA CAN BE MOVED FREELY, MAKING THE VENUE LAYOUT CONVENIENT AND FLEXIBLE;

L SUPPORT RS232 CENTRAL CONTROL SERIAL PORT, AND CONNECT WITH THE CENTRAL CONTROL EQUIPMENT TO REALIZE THE SWITCH CONTROL OF THE CONFERENCE UNIT AT THE REMOTE END;

L USING THE LATEST CHIP TECHNOLOGY TO TRANSMIT SIGNALS, HIGH FIDELITY, HIGH SIGNAL-TO-NOISE RATIO, NO SOUND DELAY.

L BUILT-IN MODERATE HOWLING SUPPRESSION FUNCTION, WHICH CAN EFFECTIVELY AND GREATLY REDUCE THE DEGREE OF HOWLING;

L BUILT-IN ADVANCED ENCRYPTION COMMUNICATION ALGORITHM TO COMPLETELY ELIMINATE COMMUNICATION ERRORS AND MALFUNCTIONS;

L BUILT-IN POWER MONITORING FUNCTION. THE CONFERENCE SEAT DISPLAYS THE BATTERY POWER IN REAL TIME;

L THE BUILT-IN CHAIRMAN PRIORITY FUNCTION SUPPORTS ONE-KEY CLOSING OF ALL FUNCTIONS OF THE ATTENDING UNITS;

L THE CONFERENCE SEAT UNIT HAS AN AUTOMATIC SHUTDOWN FUNCTION. IF THE MAIN UNIT IS POWERED OFF FOR MORE THAN 30 SECONDS, THE CONFERENCE UNIT WILL AUTOMATICALLY SHUT DOWN;

L THE HOST ADOPTS ALL-METAL STRUCTURE DESIGN, SOLEMN AND GENEROUS,

L THE HOST ADOPTS A 3.5-INCH TFT COLOR SCREEN, AND THE MENU FUNCTION DISPLAY IS MORE INTUITIVE;

L FULLY WIRELESS TRANSMISSION AND CONTROL NETWORK, ONLY NEED TO CONNECT THE HOST POWER SUPPLY AND AUDIO OUTPUT TO THE PROCESSOR AND POWER AMPLIFIER, THEN IT CAN BE USED.

HOST TECHNICAL PARAMETERS:

L WORKING VOLTAGE: DC 12V-14V 2A

L CURRENT CONSUMPTION: 600MA/H

L RECEIVING SENSITIVITY: -95DB

L RECEIVING DISTANCE: BARRIER-FREE STRAIGHT LINE 60-80 METERS

L AUDIO RESPONSE: 50HZ—15KHZ

L FREQUENCY STABILITY: +-0.001%

L SIGNAL-TO-NOISE RATIO S/N: >100DB

L DISTORTION THD:<0.01%< SPAN="">

L CARRIER FREQUENCY BAND: 616MHZ-688MHZ FREQUENCY BAND IS OPTIONAL

L COMMUNICATION FREQUENCY: 433MHZ (TWO-WAY)

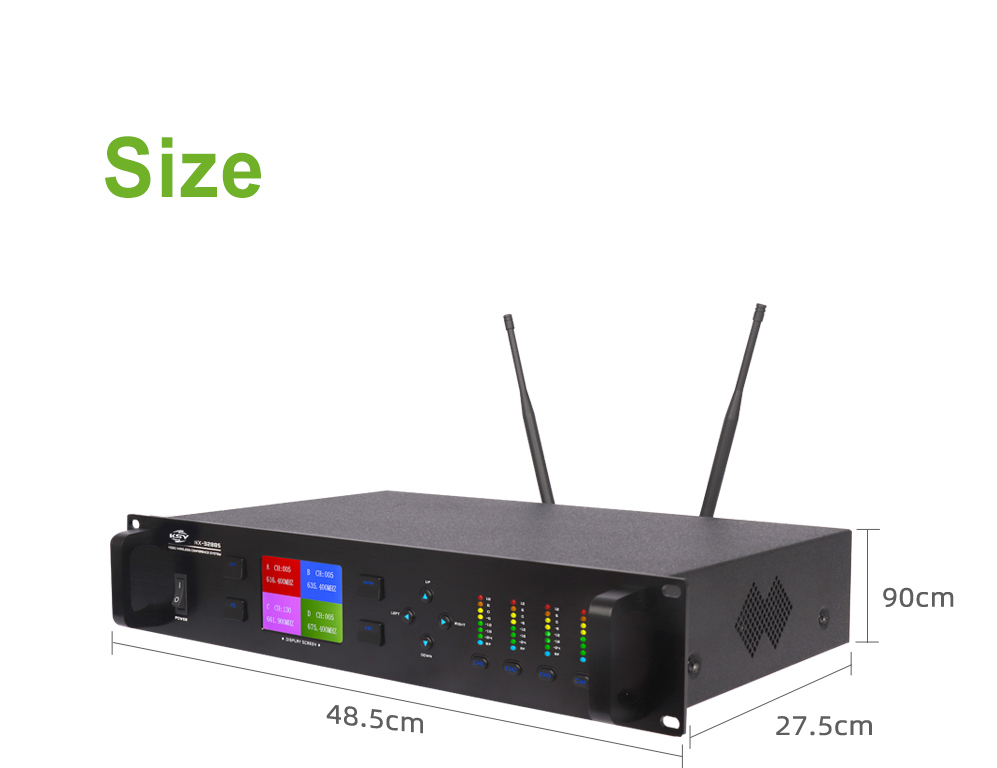

L HOST SIZE: 485X275X90MM ( W X H X D )

L PACKAGE SIZE: 515X390X160MM ( W X H X D )

L HOST NET WEIGHT/GROSS WEIGHT: 3.6KG/ 4.9KG
