NX-3288

 PRODUCT INTRODUCTION：

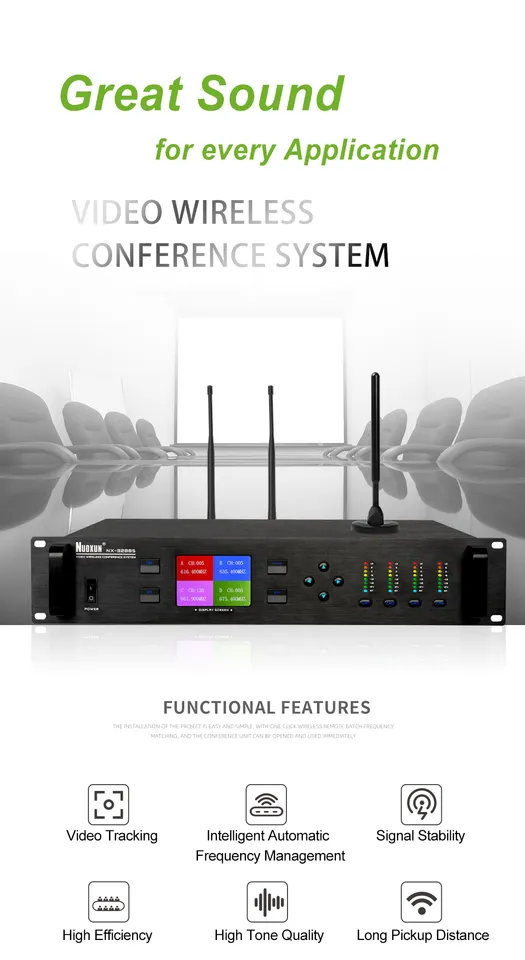

THIS SYSTEM IS A POPULAR WIRELESS DISCUSSION CONFERENCE SYSTEM DEVELOPED BASED ON THE CONCEPT OF EASY OPERATION. EASY TO OPERATE,NO NEED WIRING, AND WITH STABLE PERFORMANCE. IT IS AN IDEAL SOLUTION FOR APPLICATION-ORIENTED CONFERENCE ROOMS. PERFECT FOR FLEXIBLE/DIVISIBLE MEETING ROOMS, BOARDROOMS, COURTROOMS, LECTURE HALLS AND CONFERENCES.

  CONFERENCE SYSTEM HOST FUNCTION：

L THE ENGINEERING INSTALLATION IS EASY AND SIMPLE, ONE-BUTTON WIRELESS REMOTE BATCH FREQUENCY PAIRING, AND THE CONFERENCE UNIT IS READY TO USE;

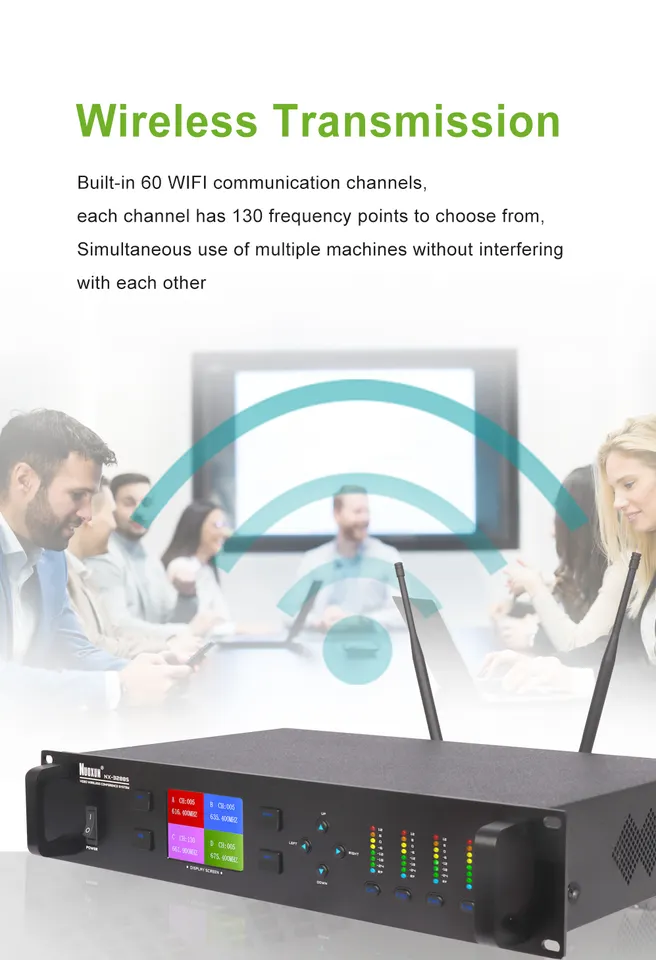

L BUILT-IN 60 WIFI COMMUNICATION CHANNELS, EACH OF THE 4 CHANNELS HAS 130 FREQUENCY POINTS TO CHOOSE FROM, AND MULTIPLE MACHINES CAN BE USED AT THE SAME TIME WITHOUT INTERFERING WITH EACH OTHER;

L BUILT-IN ADVANCED FREQUENCY SCANNING ALGORITHM, WHICH CAN SCAN THE USE ENVIRONMENT AND AUTOMATICALLY SELECT THE FREQUENCY WITHOUT INTERFERENCE;

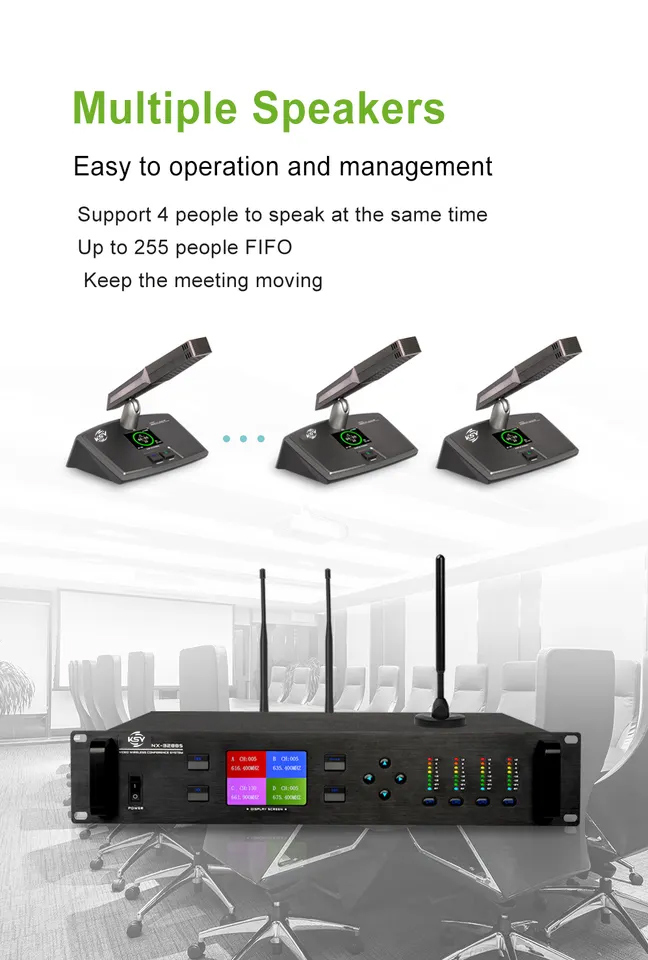

L INTELLIGENT SPEECH AUTHORITY CONTROL, SUPPORT 4 PEOPLE TO SPEAK AT THE SAME TIME, SUPPORT UP TO 255 PEOPLE FIRST IN FIRST OUT;

L THE INDEPENDENTLY DEVELOPED DATA COMMUNICATION ALGORITHM ENABLES USERS TO FLEXIBLY INCREASE OR DECREASE ATTENDANCE UNITS WITHIN THE SIGNAL RANGE;

L THERE IS NO NEED TO LAY CABLES, AND THE SIGNAL COVERAGE AREA CAN BE MOVED FREELY, MAKING THE VENUE LAYOUT CONVENIENT AND FLEXIBLE;

L BUILT-IN MODERATE HOWLING SUPPRESSION FUNCTION, WHICH CAN EFFECTIVELY AND GREATLY REDUCE THE DEGREE OF HOWLING;

L BUILT-IN ADVANCED ENCRYPTION COMMUNICATION ALGORITHM, COMPLETELY ELIMINATE COMMUNICATION ERRORS AND MALFUNCTIONS;

L BUILT-IN POWER MONITORING FUNCTION, THE CONFERENCE SEAT DISPLAYS THE BATTERY POWER IN REAL TIME;

L THE BUILT-IN CHAIRMAN PRIORITY FUNCTION SUPPORTS ONE-CLICK CLOSING OF ALL FUNCTIONS OF THE ATTENDING UNIT;

L THE CONFERENCE SEAT UNIT HAS AN AUTOMATIC SHUTDOWN FUNCTION. IF THE MAIN UNIT IS POWERED OFF FOR MORE THAN 30 SECONDS, THE CONFERENCE UNIT WILL AUTOMATICALLY SHUT DOWN;

L THE HOST ADOPTS ALL-METAL STRUCTURE DESIGN, SOLEMN AND GENEROUS

L THE HOST ADOPTS A 3.5-INCH TFT COLOR SCREEN, AND THE MENU FUNCTION DISPLAY IS MORE INTUITIVE;

L FULLY WIRELESS TRANSMISSION AND CONTROL NETWORK, ONLY NEED TO CONNECT THE HOST POWER SUPPLY AND AUDIO OUTPUT TO THE PROCESSOR AND POWER AMPLIFIER, YOU CAN USE IT.

  HOST TECHNICAL PARAMETER：

L WORKING VOLTAGE: DC 12V-14V 2A

L CURRENT CONSUMPTION: 600MA/H

L RECEIVING SENSITIVITY: -95DB

L RECEIVING DISTANCE:  60-80 METERS (UNDER IDEAL ENVIRONMENT)

L FREQUENCY RESPONSE: 50HZ—15KHZ

L FREQUENCY STABILITY: +-0.001%

L S/N RATIO : >100DB

L T.H.D:<0.01%<>

L FREQUENCY RANGE: 616MHZ-688MHZ(OPTIONAL)

L COMMUNICATION FREQUENCY: 433MHZ (TWO-WAY)

L HOST SIZE: 485X275X90MM ( W X H X D )

L PACKAGE SIZE: 515X390X160MM ( W X H X D )
