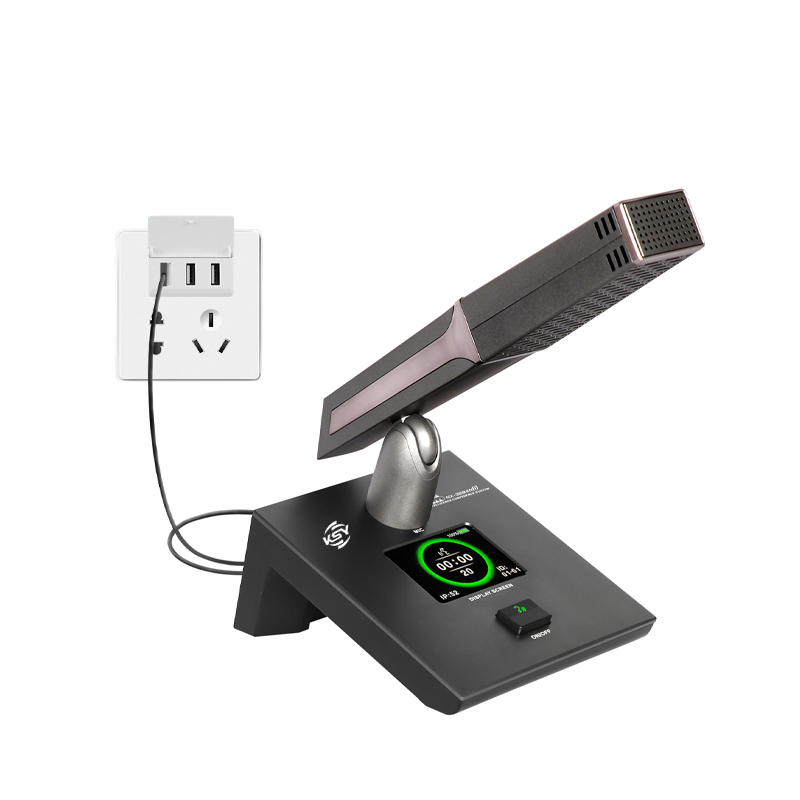

NX-3284V Wireless Conference System Microphone Unit

NX-3284V Microphone unit for NX-3288 wireless discussion conference system

  UNIT FUNCTION：

 DETACHABLE CONFERENCE SEAT ON THE TABLE, PURE METAL ALUMINUM ALLOY PANEL, STRONG AND DURABLE;

 THE BASE IS MADE OF ENGINEERING PLASTIC MATERIAL, THE SURFACE IS SPRAYED WITH CASHMERE, THE APPEARANCE DESIGN IS NOVEL, AND THE BUILT-IN ANTENNA IS BEAUTIFUL AND DECENT.

 THE 2.5-INCH TFT COLOR SCREEN IS USED TO DISPLAY THE CLOCK AND BATTERY POWER, AND THE INFORMATION DISPLAY IS MORE INTUITIVE AND HUMANIZED.

 FIXED SQUARE MICROPHONE WITH GREEN LIGHT GUIDE LIGHT;

 THE BUILT-IN SUPER-CARDIOID DIRECTIONAL HIGH-SENSITIVITY CAPACITOR MICROPHONE CORE MAKES THE CONFERENCE SOUND NEARLY PERFECT;

 SILENT, WATERPROOF, DUSTPROOF AND NO DEAD ANGLE SWITCH BUTTON, WITH LIGHT GUIDE DISPLAY;

 THE UNIT BUTTON AND THE MICROPHONE BAR HAVE INDICATOR LIGHTS, WHICH SHOW THE STATUS OF THE MICROPHONE ON AND OFF;

 THE UNIT CAN AUTOMATICALLY CHANGE THE ID THROUGH THE HOST, AND FLEXIBLY INCREASE OR DECREASE THE NUMBER OF MICROPHONES;

 TWO POWER SUPPLY METHODS ARE OPTIONAL: 2*AA BATTERIES OR BUILT-IN LITHIUM BATTERY CHARGING(OPTIONAL);

 ULTRA-LOW POWER CONSUMPTION, THE CONFERENCE UNIT CAN LAST FOR 8 HOURS OF SPEAKING TIME OR 24 HOURS OF STANDBY TIME;

 MICROPHONE UNIT TECHNICAL PARAMETER：

 PICKUP HEAD DIRECTIVITY: SUPERCARDIOID POINTING

 SENSITIVITY: >20DBM (1V)

 TRANSMITTING POWER: >10DBM(10MW)

 MICROPHONE POWER CONSUMPTION: 120MAH

 FREQUENCY RANGE: 616MHZ-688MHZ (OPTIONAL)

 NX-3284 UNIT SIZE: 120X150X63MM ( W X H X D )

 NX-3284 PACKAGE SIZE: 570X177X137MM ( W X H X D )

 NX-3284 NET WEIGHT: 0.85KG
