N93

N93 PROFESSIONAL UHF DUAL CHANNELS WIRELESS MICROPHONE

FEATURES:

◆ ADJUSTABLE UHF FREQUENCY DUAL CHANNEL WIRELESS SYSTEM WITH 200HIGH-FREQUENCY CHANNELS CAN BE SELECTED.

◆ THE RECEIVER AND TRANSMITTER USE IR FREQUENCY MATCHING TECHNOLOGY TOSYNCHRONIZE THE CODE WITH ONE BUTTON.

◆ PROFESSIONAL PERFORMANCE PHASE-LOCKING WITH NOISE LOCK SQUELCH CONTROL AND DIGITAL PILOT TECHNOLOGY TO EFFECTIVE BLOCKING INTERFERENCE SIGNAL

◆ IT ADOPTS THE PATENTED TECHNOLOGY OF AUDIO REFERENCE COMPRESSION EXTENSION"DEVELOPED BY NUOXUN

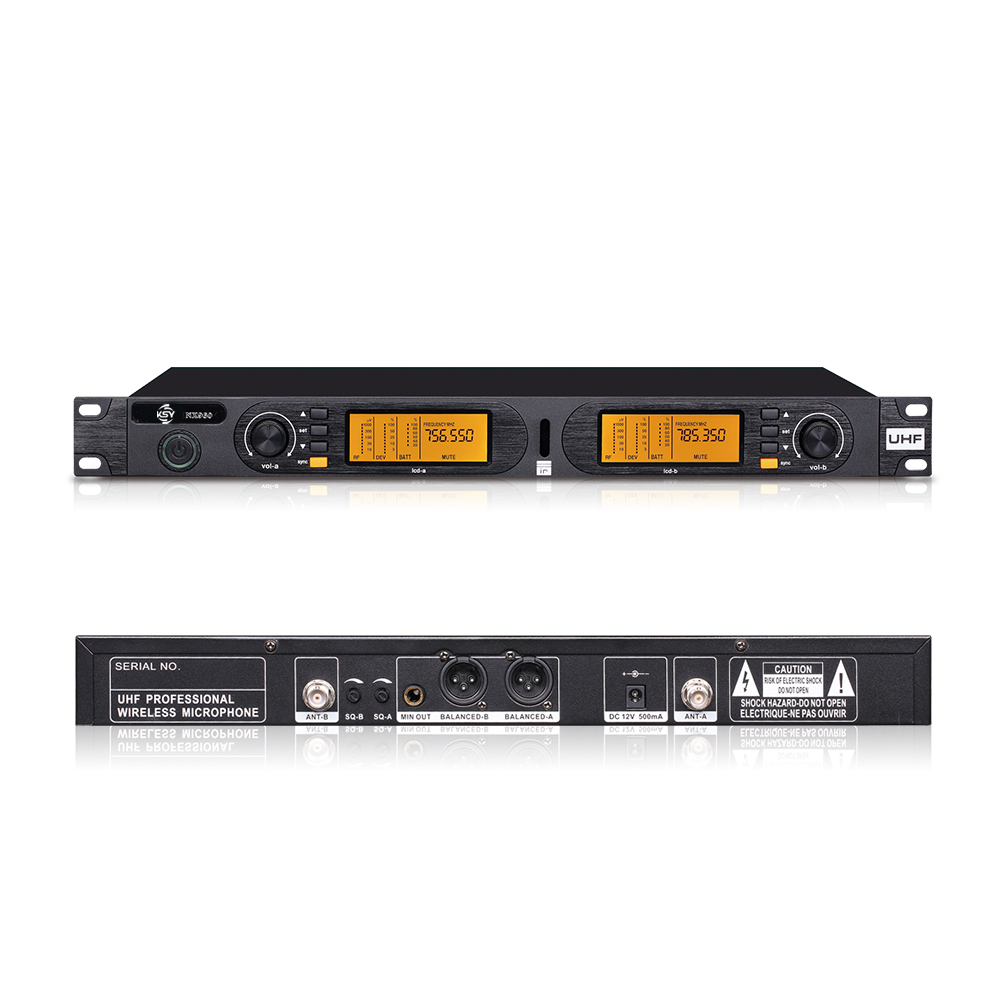

RECEIVER SPECIFICATION:

◆ NOISE LOCK SQUELCH AND TONE CODE NAVIGATION LOCK SQUELCH CONTROL.

◆ AUDIO DYNAMIC EXPANSION AND AUTOMATIC LEVEL CONTROL CIRCUIT.

◆ WORKING FREQUENCY: 640~690MHZ

◆ PLL FREQUENCY SYNTHESIS TECHNOLOGY, 2-100 CHANNELS FREE CHOICE

◆ MULTI-FUNCTION LCD, DISPLAY SPECIAL AUDIO/RF LEVEL, BATTERY VOLTAGEAND INFRARED FREQUENCY

◆ FREQUENCY RESPONSE: 60HZ-16KHZ

◆ FREQUENCY STABILITY:±0.005%

◆ VOICE PICK-UP HEAD GAIN ADJUSTMENT KNOB: -20DB TO 35B

◆ FM MAXIMUM MODULATION FREQUENCY DEVIATION: ±45KHZ RF

◆ RF OUTPUT POWER: HIGH 10MW/LOW 5MW

◆ HIGHER HARMONIC: LOWER THAN 60DB

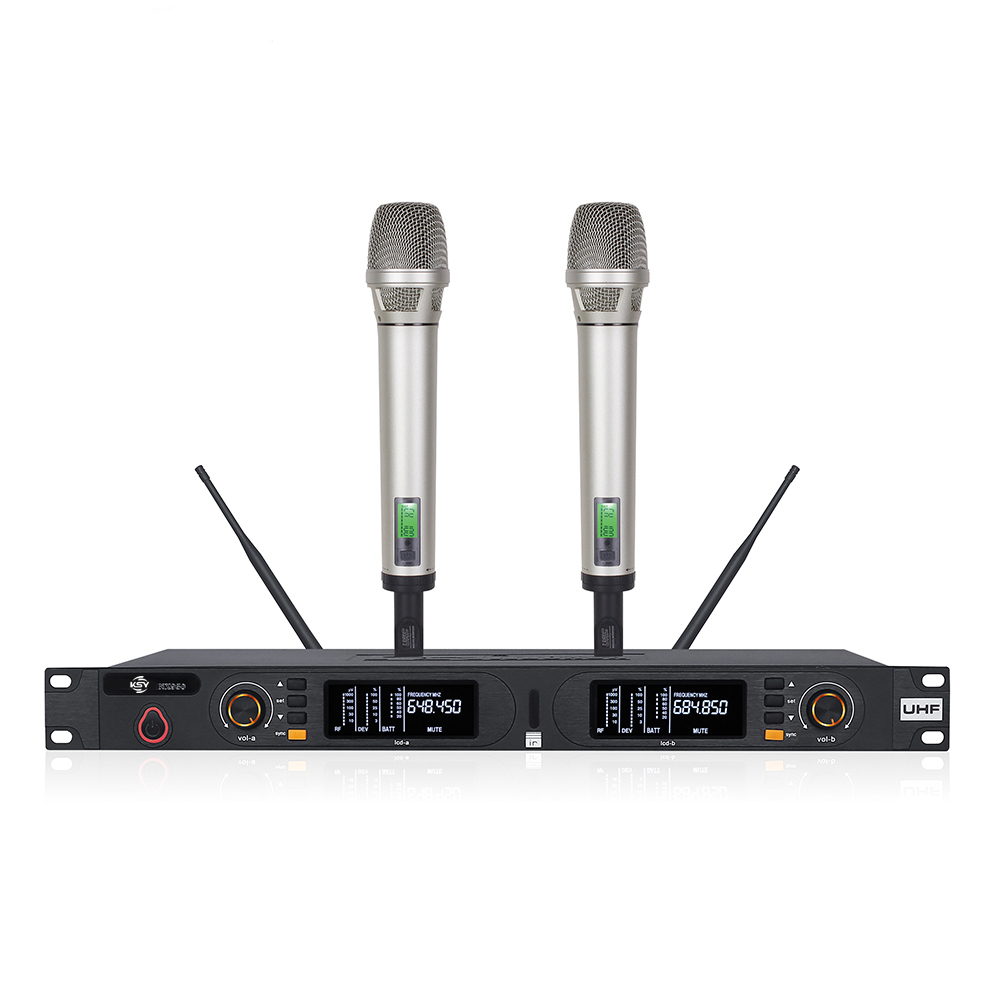

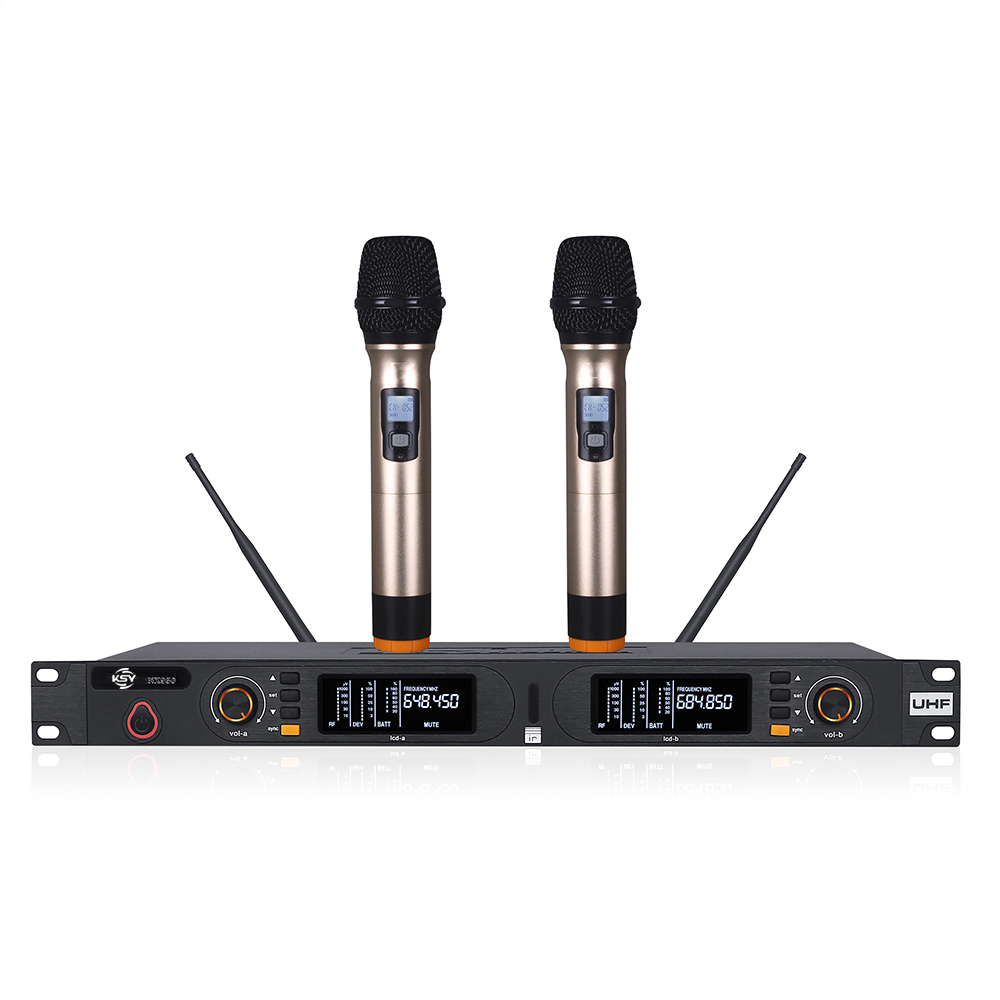

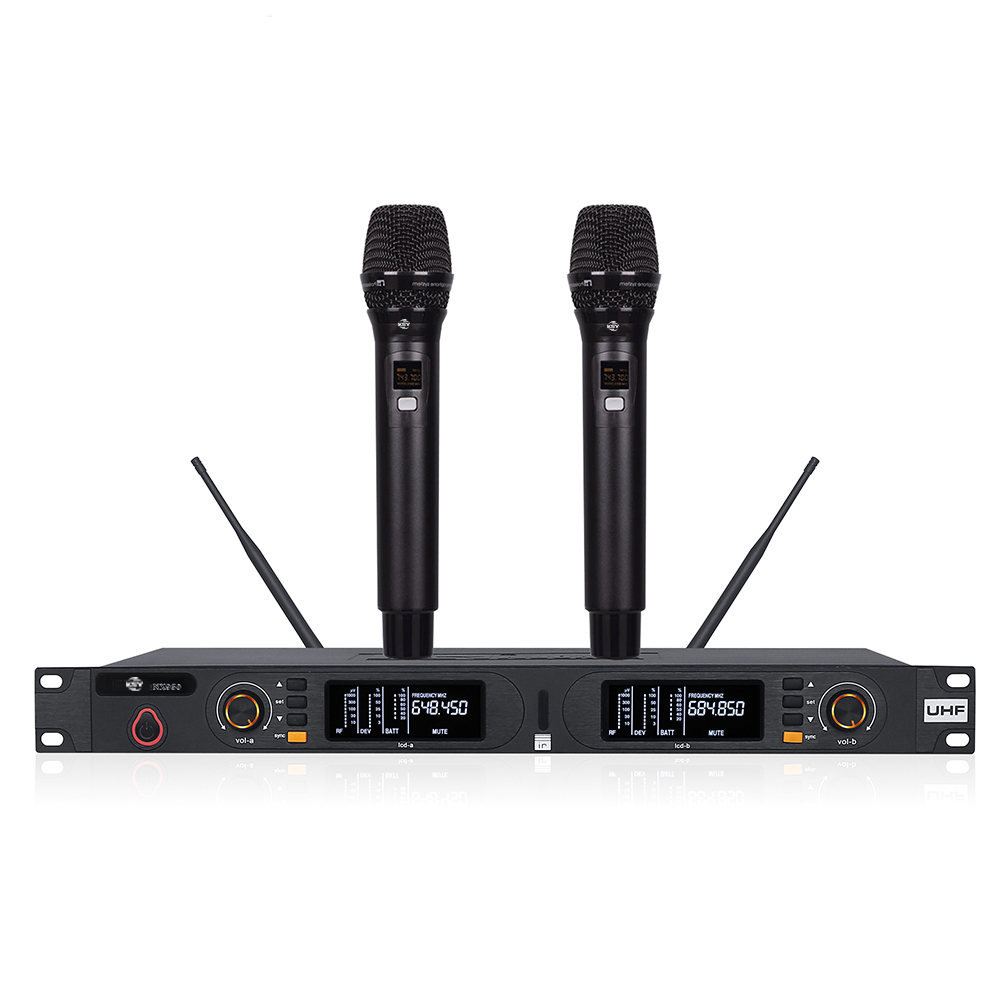

HANDHELD MICROPHONE SPECIFICATION:

◆ FREQUENCY RANGE:640MHZ-690MHZ

◆  PLL FREQUENCY SYNTHESIS TECHNOLOGY

◆  2~100 CHANNELS CAN BE SELECTED

◆  MUTI-FUNCTION LCD,DISPLAY SPECIAL AUDIO/RF LEVEL,BATTERY VOLTAGE AND INFRARED FREQUENCY

◆  FREQUENCY STABILITY:±0.005%

◆  VOICE PICK-UP HEAD GAIN ADJUSTMENT DEVIATION:±45KHZ RF

◆  RF OUTPUT POWER: LOW 5MW-10MW

◆  HIGHER HARMONIC: LOWER THAN 60DB

◆  2 AA BATTERIES(INCLUDED) PROVIDE 8 HOURS OF CONTINUOUS USE

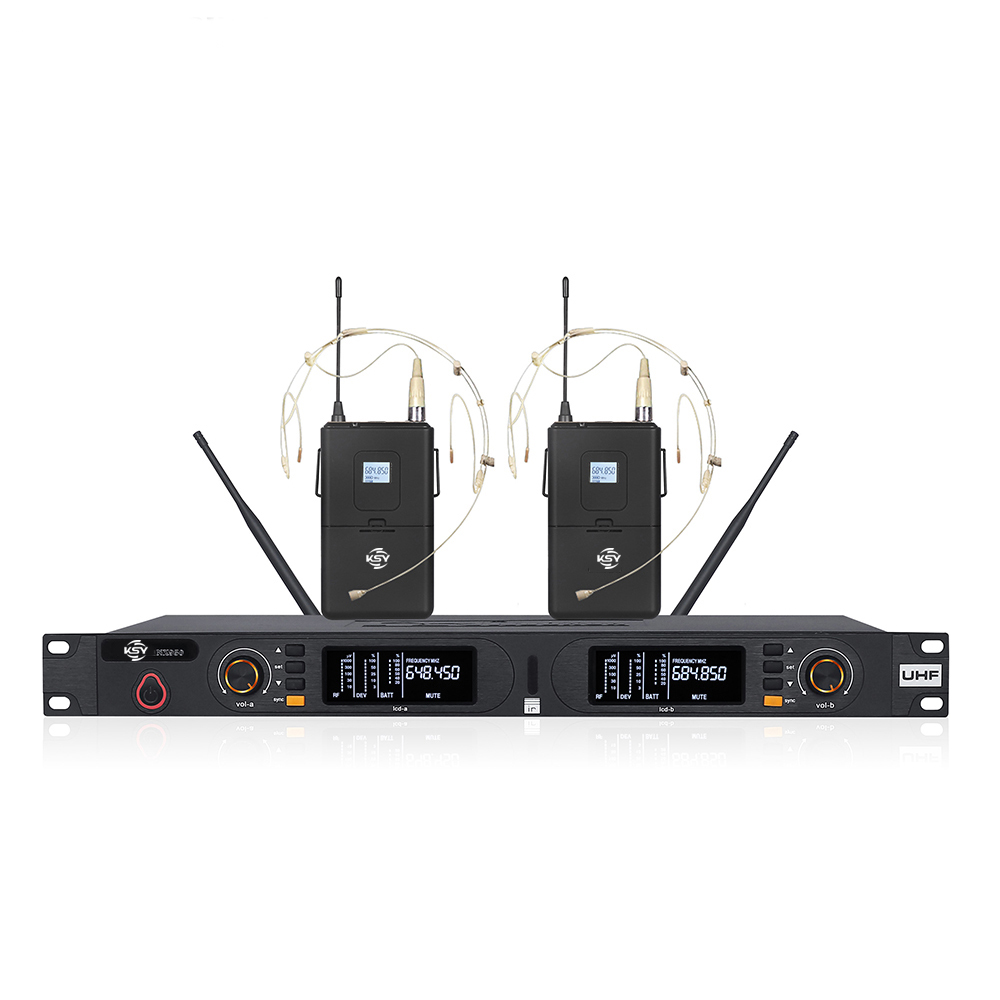

LAPEL/HEADSET MICROPHONE SPECIFICATION:

◆  MODULATION MODE: WIDEBAND FM

◆  CHANNEL: 2-100 CHANNELS CAN BE SELECTED WITH LCD DIGITAL DISPLAY

◆  CHANNEL INTERVAL: 300KHZ

◆  FREQUENCY STABILITY: ± 0.002%

◆  DYNAMIC RANGE: 100DB

◆  MAXIMUM DEVIATION: +45 KHZ

◆  AUDIO FREQUENCY RESPONSE: 60HZ-16KHZ(±3DB)

◆  S/R RATIO: > 95DB

OVERALL UNIT

WORK ENVIRONMENT TEMPERATURE : -10℃+50℃
