LM836T-96K

Use TI OMAP-L138 high-performance DSP, with a computing capacity of up to 3648 MIPS and 2746 MFLOPS per second, built-in multiple audio algorithms, 96KHz sampling rate.
32-bit DSP processing, 96KHz sampling rate, 32bit ADC and 24bit DAC.

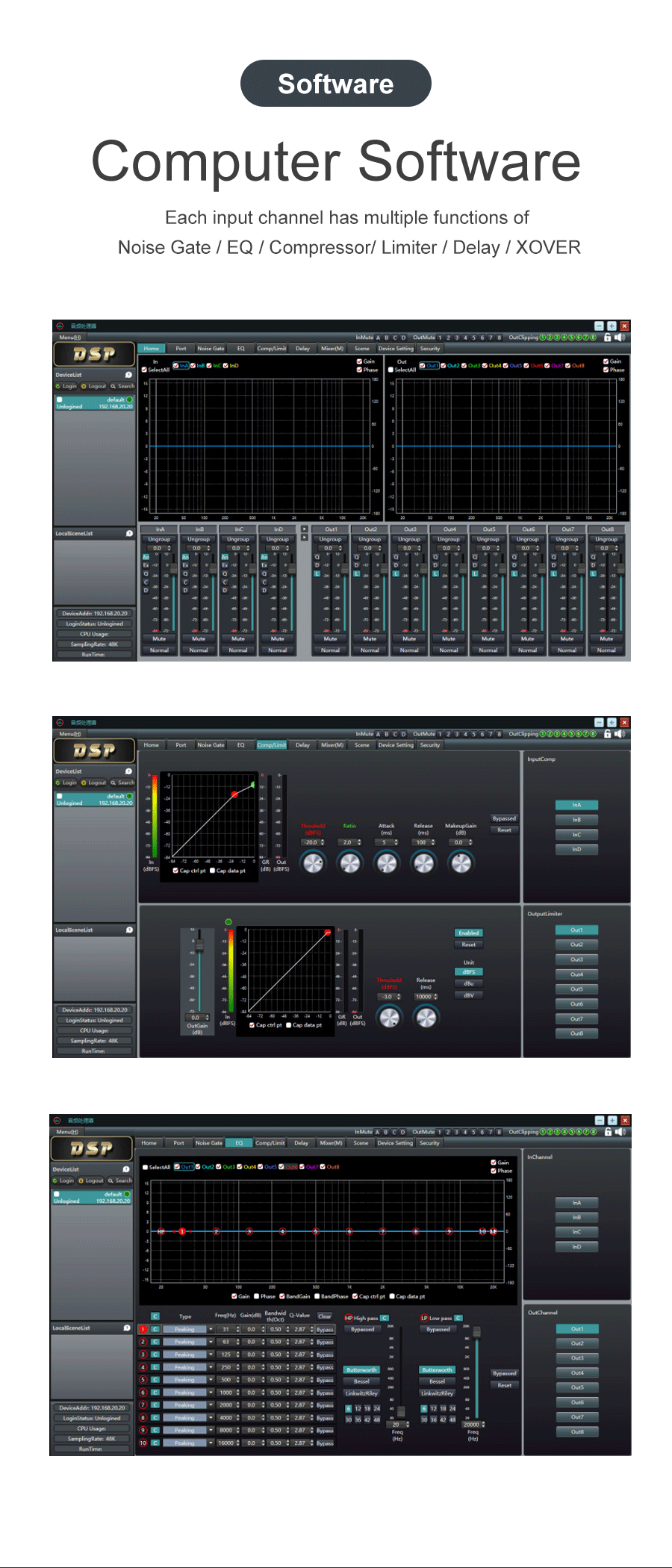

The input processing includes: port input, noise gate, gain control, mute, phase,13-band EQ, Xover, input compression, 2000ms input adjustable delay, linkage adjustment and other processing functions.
The output processing includes:13-band EQ, 2000ms adjustable output delay, gain control, mute, phase, Xover, output limit, port output, linkage adjustment and other processing functions.
 All inputs and outputs channels can be freely routing, and the name of each input and output channel can be changed.
All input and output channels have independent phase curve adjustment function.
Parameter settings between any channels can be freely copied, and any channel can be linked adjustment.
All input and output channels can be auto EQ by importing channel parameters
There are six types of equalization: peaking, notch, all pass 1st, all pass 2nd, high shelf and low shelf.
All input and output channels have HPF and LPF, the types are: Butterworth, Bessel, Linkwitz-Riley, the slope is optional from 6/12/18/24/30/36/42/48 dB/Oct.
All input compressor have thresholds, ratios, start-up time, recovery time and compensation gain adjustable.
All output limiter are included: threshold, recovery time can be adjusted, brick wall type limiter, starting time is 0, absolute limit.
The delay of all input and output channels with 2000ms delay.
Built-in signal generator, input mode can choose pink noise, white noise, sweep frequency and 20Hz-20KHz sine wave adjustable, signal amplitude adjustable.

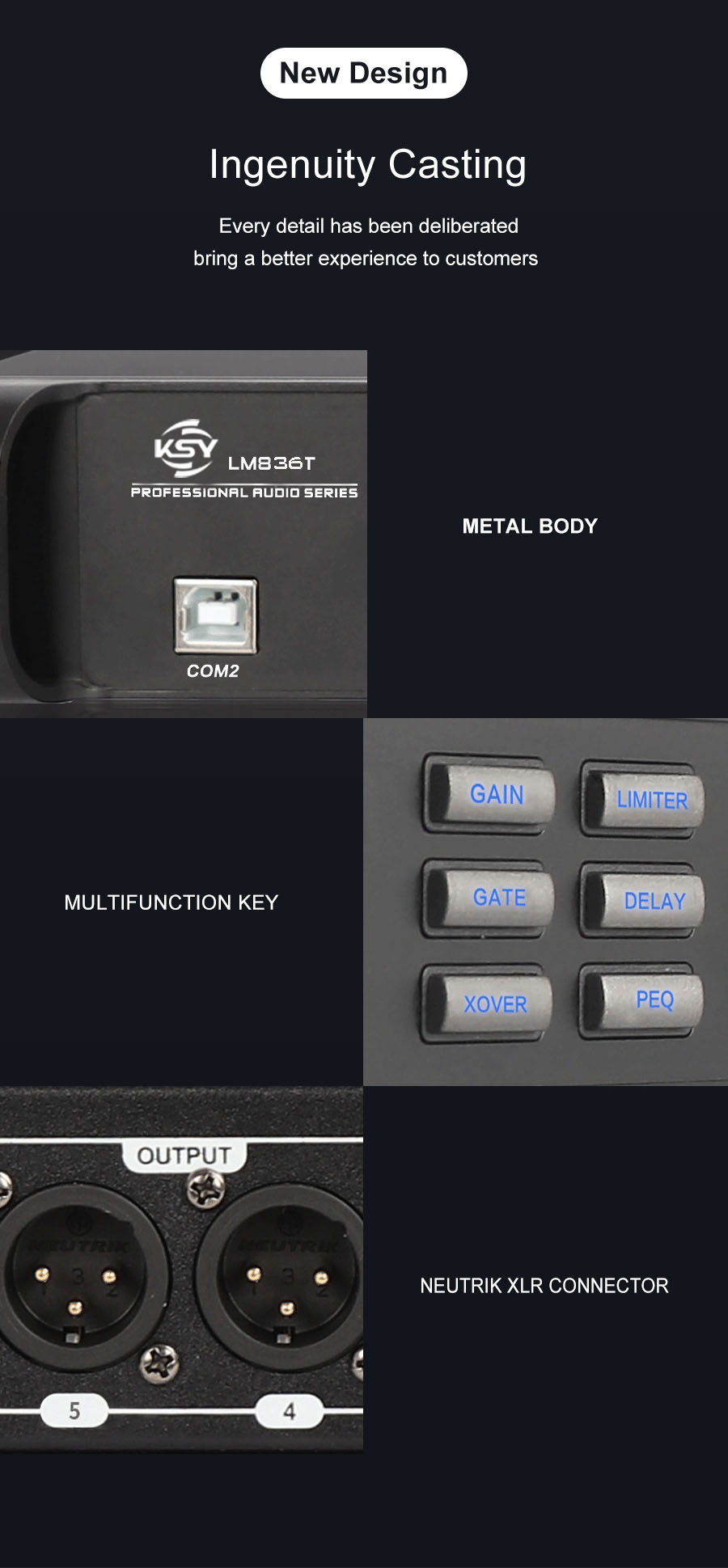

The front panel has USB control port for serial port connection, input and output level indicator and function buttons, the rear panel has RS232 control port and the 100M network port connection. One-button connection makes the user's operation easier and faster.
It supports 64 preset scenes to be saved, and the device scene algorithm and each preset can be saved and loaded separately. It also has the permission management function to make the device more secure.
Application: professional performances, bar, conference rooms, courtrooms, auditoriums, multi-function halls, etc.
Input Impedance：10KΩ Balanced / 20KΩ Unbalanced
Output Impedance：50Ω Balanced / 100Ω Unbalanced
Frequency Response：20Hz – 20KHz±0.1dB
AD & DA Converter：32bit ADC& 24bit DAC
Default Output Level：0dBu
Maximum Input /Output Level：18dBu
THD+N Distortion：≤0.002% @ 4dBu 20Hz-20KHz
System Delay：≤1.7ms
Noise Floor：-92dBu
Input To Output Dynamic Range：≥110dB
S/N Ratio：≥110dB
Parametric equalizer：input and output channels with 11-band EQ adjust
6 filter types：peaking, notch, all pass 1st, all pass 2nd, high shelf, low shelf
The filter gain range：-30dB to +30dB, the step accuracy is 0.1dB
Input and output gain range：-72dB to +12dB, step accuracy: 0.1dB
Center frequency：adjustable within the frequency range of 20Hz~20KHz with step accuracy of 1Hz
Filter Q value Bandwidth：Peaking, Notch, All-pass 2nd, Q value: 0.18 ~ 144.27
High and low pass filter: Butterworth slope: 6/12/18/24/30/36/42/48dB/Oct
Bessel slope: 6/12/18/24/30/36/42/48dB/Oct
Linkwitz-Riley: 12/24/36/48dB/Oct

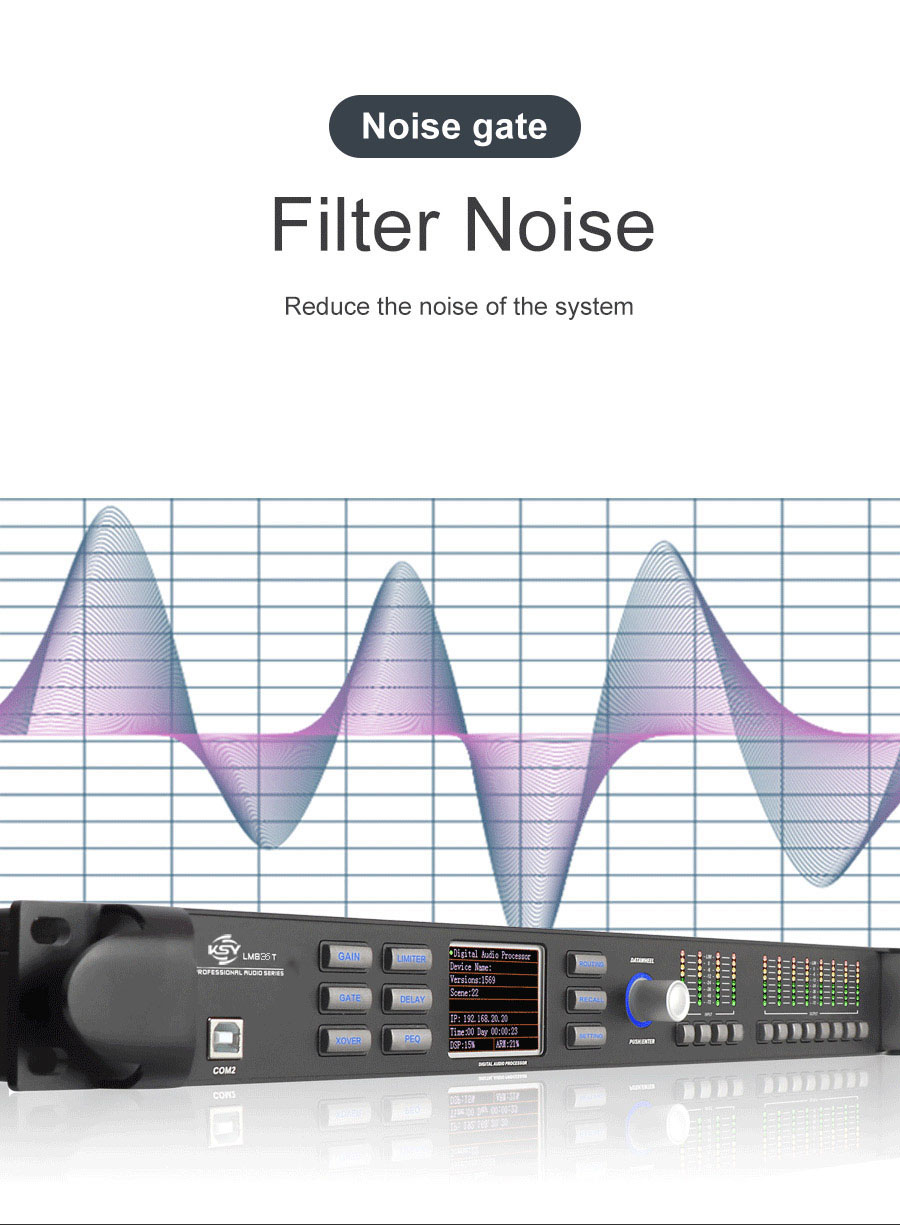

Input noise gate：Threshold range: -100dBFS ～ 0dBFS
Start control time: 1ms ~ 1000ms;
Recovery time: 1ms ~ 1000ms
Input compressor：Threshold range: -84dBFS ~ 0dBFS
Ratio: 1 ~ 20
Start-up time: 1ms ~ 1000ms
Recovery time: 1ms ~ 10000ms
Compensation gain: -24dB ~ 30dB
Output limiter：Threshold range: -84dBFS ~ 0dBFS
Recovery time: 0-100000ms
Delay：Each input and output channel has up to 2000ms delay adjustable
